| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (114-15-00033) | TRANSMISSION ASS'Y | 1 | SN: 40405- |
|||
| ? | □113-15-00602 | TRANSMISSION ASS'Y,(D31S) | 1 | SN: 40255-40404 |
|||
| ? | □113-15-00601 | TRANSMISSION ASS'Y,(D31S) | 1 | SN: 40068-40254 |
|||
| ? | □113-15-00602 | TRANSMISSION ASS'Y,(D31Q) | 1 | SN: 40239-40404 |
|||
| ? | □113-15-00601 | TRANSMISSION ASS'Y,(D31Q) | 1 | SN: 40068-40238 |
|||
| ? | □113-15-00600 | TRANSMISSION ASS'Y | 1 | SN: 40001-40067 |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2501 TO 2561. | ||||||
| ? | (114-15-00313) | • TRANSMISSION ASS'Y | 1 | SN: 40405- |
|||
| ? | (113-15-00611) | • TRANSMISSION ASS'Y,(D31S) | 1 | SN: 40255-40404 |
|||
| ? | (113-15-00610) | • TRANSMISSION ASS'Y,(D31S) | 1 | SN: 40001-40254 |
|||
| ? | (113-15-00611) | • TRANSMISSION ASS'Y,(D31Q) | 1 | SN: 40239-40404 |
|||
| ? | (113-15-00610) | • TRANSMISSION ASS'Y,(D31Q) | 1 | SN: 40001-40238 |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2501 TO 2505 AND 2507. | ||||||

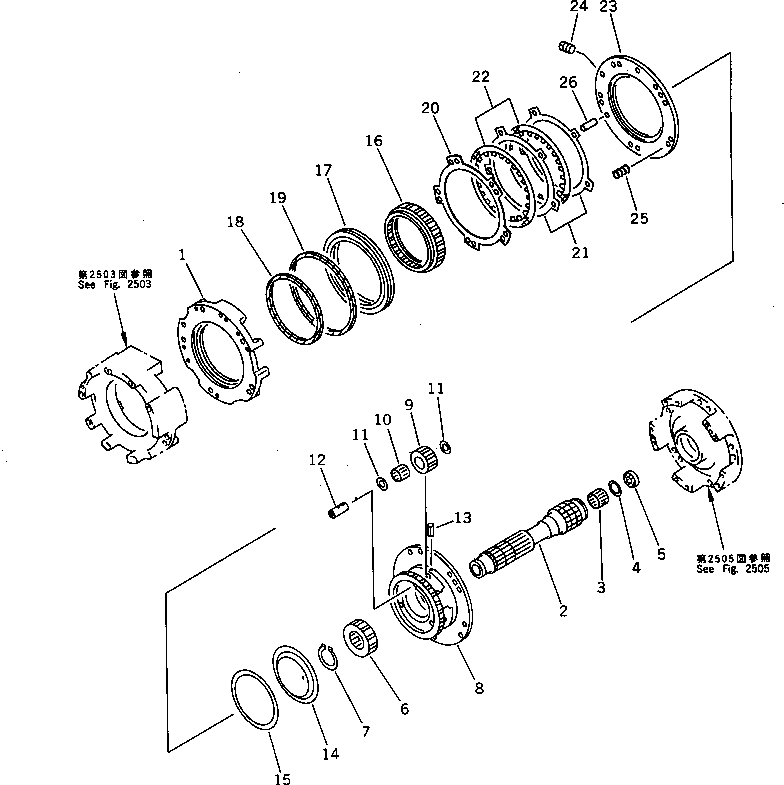

| ? | 113-15-21151 | • • HOUSING,2ND | 1 | SN: 40001- |
|||
| ? | 113-15-32121 | • • SHAFT | 1 | SN: 40001- |
|||
| ? | 113-15-29440 | • • BEARING,NEEDLE | 1 | SN: 40001- |
|||
| ? | 113-15-29520 | • • RING,SNAP | 1 | SN: 40001- |
|||
| ? | 113-15-39120 | • • SEAL,OIL (K1) | 1 | SN: 40001- |
|||
| ? | 113-15-22231 | • • GEAR¤ 36 TEETH | 1 | SN: 40001- |
|||
| ? | 04064-04018 | • • RING,SNAP | 1 | SN: 40001- |
|||
| ? | 113-15-32330 | • • CARRIER | 1 | SN: 40001- |
|||
| ? | 113-15-22421 | • • GEAR | 3 | SN: 40001- |
|||
| ? | 113-15-29410 | • • BEARING,NEEDLE | 3 | SN: 40001- |
|||
| ? | 113-15-32560 | • • WASHER,THRUST | 6 | SN: 40434- |
|||
| ? | □113-15-22560 | • • WASHER,THRUST | 6 | SN: 40001-40433 |
|||
| ? | 113-15-22510 | • • SHAFT | 3 | SN: 40001- |
|||
| ? | 113-15-29560 | • • PIN,SPRING | 3 | SN: 40001- |
|||
| ? | 113-15-22380 | • • COVER | 1 | SN: 40001- |
|||
| ? | 113-15-22930 | • • RING,SNAP | 1 | SN: 40001- |
|||
| ? | 113-15-22640 | • • GEAR,RING | 1 | SN: 40001- |
|||
| ? | 113-15-22760 | • • PISTON,2ND | 1 | SN: 40001- |
|||
| ? | 113-15-29220 | • • RING,SEAL (K1) | 1 | SN: 40001- |
|||
| ? | 113-15-29250 | • • RING,SEAL (K1) | 1 | SN: 40001- |
|||
| ? | 113-15-22720 | • • PLATE | 1 | SN: 40001- |
|||
| ? | 113-15-22730 | • • PLATE | 2 | SN: 40001- |
|||
| ? | 113-15-42711 | • • DISC (D31S) | 2 | SN: 40255- |
|||
| ? | ▩113-15-22711 | • • DISC (D31S) | 2 | SN: 40001-40254 |
|||
| ? | (113-15-42711(13){103-15-36150)}\((D31S)\) | ||||||
| ? | 113-15-42711 | • • DISC (D31Q) | 2 | SN: 40239- |
|||
| ? | ▩113-15-22711 | • • DISC (D31Q) | 2 | SN: 40001-40238 |
|||
| ? | (113-15-42711(13){103-15-36150)}\((D31Q)\) | ||||||
| ? | 104-15-00640 | • • PLATE ASS'Y | 1 | SN: 40001- |
|||
| ? | ☆ | • • • PLATE | 1 | SN: 40001- |
|||
| ? | 113-15-25490 | • • • PLUG | 1 | SN: 40001- |
|||
| ? | 113-15-32910 | • • SPRING | 5 | SN: 40001- |
|||
| ? | 113-15-21290 | • • PIN,DOWEL | 2 | SN: 40001- |
