| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (114-15-00033) | TRANSMISSION ASS'Y | 1 | SN: 40405- |
|||
| ? | □113-15-00602 | TRANSMISSION ASS'Y,(D31S) | 1 | SN: 40255-40404 |
|||
| ? | □113-15-00601 | TRANSMISSION ASS'Y,(D31S) | 1 | SN: 40068-40254 |
|||
| ? | □113-15-00602 | TRANSMISSION ASS'Y,(D31Q) | 1 | SN: 40239-40404 |
|||
| ? | □113-15-00601 | TRANSMISSION ASS'Y,(D31Q) | 1 | SN: 40068-40238 |
|||
| ? | □113-15-00600 | TRANSMISSION ASS'Y | 1 | SN: 40001-40067 |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2501 TO 2561. | ||||||
| ? | (114-15-00313) | • TRANSMISSION ASS'Y | 1 | SN: 40405- |
|||
| ? | (113-15-00611) | • TRANSMISSION ASS'Y,(D31S) | 1 | SN: 40255-40404 |
|||
| ? | (113-15-00610) | • TRANSMISSION ASS'Y,(D31S) | 1 | SN: 40001-40254 |
|||
| ? | (113-15-00611) | • TRANSMISSION ASS'Y,(D31Q) | 1 | SN: 40239-40404 |
|||
| ? | (113-15-00610) | • TRANSMISSION ASS'Y,(D31Q) | 1 | SN: 40001-40238 |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2501 TO 2505 AND 2507. | ||||||

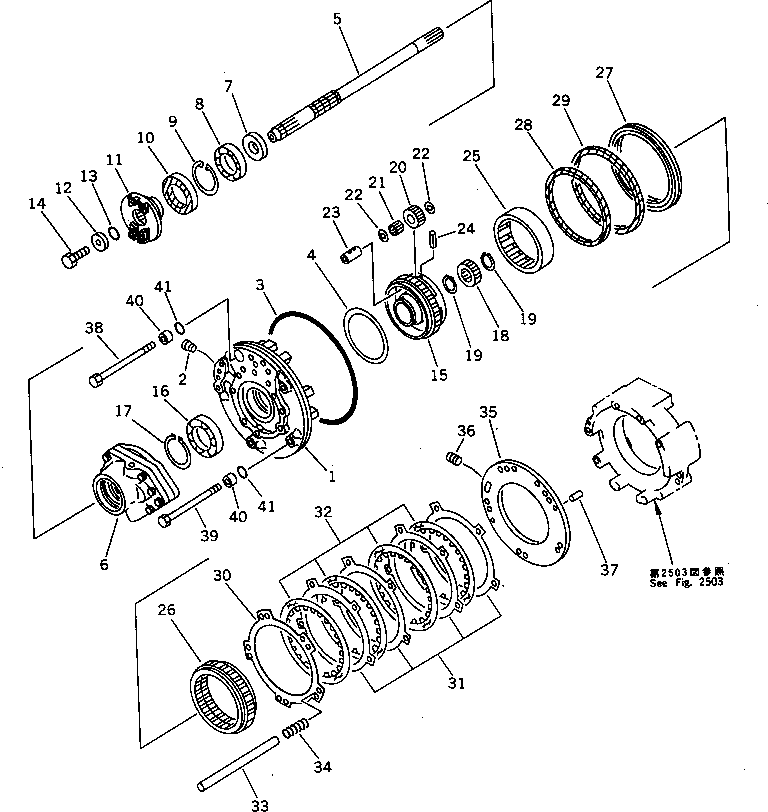

| ? | 113-15-00651 | • • HOUSING ASS'Y,REVERSE | 1 | SN: 40405- |
|||
| ? | 113-15-00650 | • • HOUSING ASS'Y,REVERSE | 1 | SN: 40001-40404 |
|||
| ? | ☆ | • • • HOUSING | 1 | SN: 40405- |
|||
| ? | ☆ | • • • HOUSING | 1 | SN: 40001-40404 |
|||
| ? | 07043-00108 | • • • PLUG | 1 | SN: 40001- |
|||
| ? | 07000-05270 | • • O-RING (K1) | 1 | SN: 40001- |
|||
| ? | 07018-01305 | • • RING,RING | 1 | SN: 40001- |
|||
| ? | 113-15-42112 | • • SHAFT | 1 | SN: 40405- |
|||
| ? | 113-15-42111 | • • SHAFT | 1 | SN: 40001-40404 |
|||
| ? | (113-15-00470) | • • PUMP ASS'Y | 1 | SN: 40001- |
|||
| ? | 113-15-22140 | • • SPACER | 1 | SN: 40001- |
|||
| ? | 06000-06010 | • • BEARING,BALL | 1 | SN: 40001- |
|||
| ? | 04065-08025 | • • RING,SNAP | 1 | SN: 40001- |
|||
| ? | 07012-10065 | • • SEAL,OIL (K1) | 1 | SN: 40001- |
|||
| ? | 113-15-42150 | • • COUPLING | 1 | SN: 40001- |
|||
| ? | 103-15-32150 | • • HOLDER | 1 | SN: 40001- |
|||
| ? | 07000-73025 | • • O-RING (K1) | 1 | SN: 40001- |
|||
| ? | 01010-51050 | • • BOLT | 1 | SN: 40001- |
|||
| ? | 113-15-42311 | • • CARRIER | 1 | SN: 40405- |
|||
| ? | 114-15-42310 | • • CARRIER | 1 | SN: 40001-40404 |
|||
| ? | 06000-06011 | • • BEARING | 1 | SN: 40001- |
|||
| ? | 04064-05520 | • • RING,SNAP | 1 | SN: 40001- |
|||
| ? | 113-15-22211 | • • GEAR¤ 24 TEETH | 1 | SN: 40001- |
|||
| ? | 113-15-22950 | • • RING,SNAP | 2 | SN: 40001- |
|||
| ? | 113-15-22411 | • • GEAR¤ 21 TEETH | 4 | SN: 40405- |
|||
| ? | 113-15-22411 | • • GEAR¤ 21 TEETH | 3 | SN: 40001-40404 |
|||
| ? | 113-15-29410 | • • BEARING,NEEDLE | 4 | SN: 40405- |
|||
| ? | 113-15-29410 | • • BEARING,NEEDLE | 3 | SN: 40001-40404 |
|||
| ? | 113-15-32560 | • • WASHER,THRUST | 8 | SN: 40434- |
|||
| ? | 113-15-22560 | • • WASHER,THRUST | 8 | SN: 40405-40433 |
|||
| ? | 113-15-22560 | • • WASHER,THRUST | 6 | SN: 40001-40404 |
|||
| ? | 113-15-22510 | • • SHAFT | 4 | SN: 40405- |
|||
| ? | 113-15-22510 | • • SHAFT | 3 | SN: 40001-40404 |
|||
| ? | 113-15-29560 | • • PIN,SPRING | 4 | SN: 40405- |
|||
| ? | 113-15-29560 | • • PIN,SPRING | 3 | SN: 40001-40404 |
|||
| ? | 113-15-42610 | • • GEAR,RING | 1 | SN: 40001- |
|||
| ? | 113-15-22620 | • • GEAR,RING | 1 | SN: 40001- |
|||
| ? | 113-15-22760 | • • PISTON,REVERSE | 1 | SN: 40001- |
|||
| ? | 113-15-29220 | • • RING,SEAL (K1) | 1 | SN: 40001- |
|||
| ? | 113-15-29250 | • • RING,SEAL (K1) | 1 | SN: 40001- |
|||
| ? | 113-15-22720 | • • PLATE | 1 | SN: 40001- |
|||
| ? | 113-15-22730 | • • PLATE | 4 | SN: 40001- |
|||
| ? | 113-15-42711 | • • DISC (D31S) | 4 | SN: 40255- |
|||
| ? | ▩113-15-22711 | • • DISC (D31S) | 4 | SN: 40001-40254 |
|||
| ? | (113-15-42711(13){103-15-36150)}\((D31S)\) | ||||||
| ? | 113-15-42711 | • • DISC (D31Q) | 4 | SN: 40239- |
|||
| ? | ▩113-15-22711 | • • DISC (D31Q) | 4 | SN: 40001-40238 |
|||
| ? | (113-15-42711(13){103-15-36150)}\((D31Q)\) | ||||||
| ? | 113-15-31270 | • • PIN | 5 | SN: 40001- |
|||
| ? | 113-15-42930 | • • SPRING | 5 | SN: 40001- |
|||
| ? | 113-15-00240 | • • PLATE ASS'Y | 1 | SN: 40001- |
|||
| ? | ☆ | • • • PLATE | 1 | SN: 40001- |
|||
| ? | 125-15-11230 | • • • PLUG | 1 | SN: 40001- |
|||
| ? | 113-15-21290 | • • PIN,DOWEL | 2 | SN: 40001- |
|||
| ? | 113-15-21241 | • • BOLT | 1 | SN: 40001- |
|||
| ? | 113-15-21251 | • • BOLT | 4 | SN: 40001- |
|||
| ? | 113-15-21260 | • • WASHER | 5 | SN: 40001- |
|||
| ? | 07000-01008 | • • O-RING (K1) | 5 | SN: 40001- |
