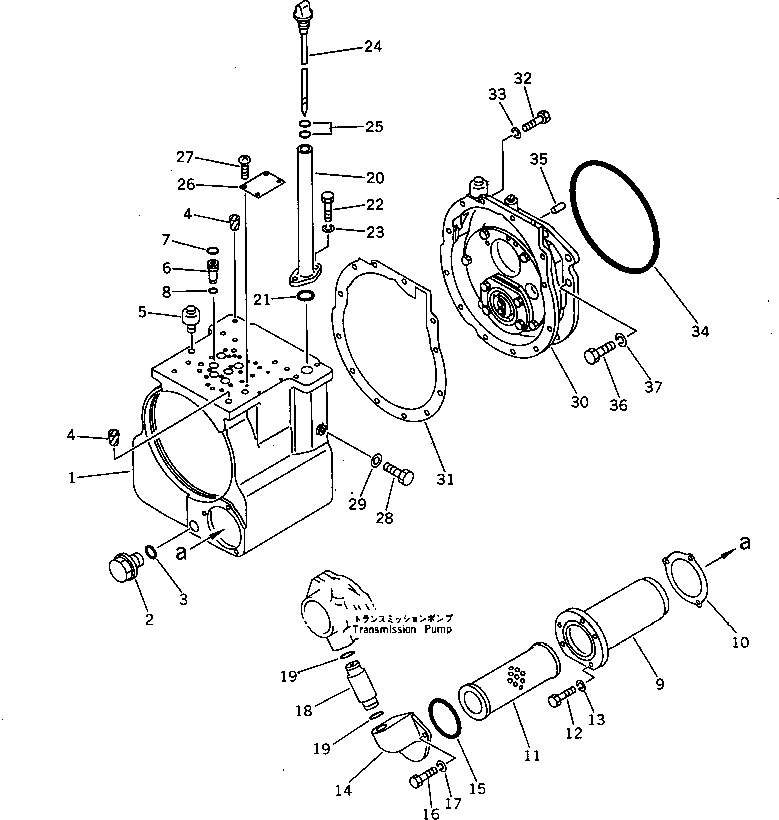

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 114-15-00033 | TRANSMISSION ASS'Y | 1 | SN: 40405- |
|||
| ? | □113-15-00602 | TRANSMISSION ASS'Y,(D31S) | 1 | SN: 40255-40404 |
|||
| ? | □113-15-00601 | TRANSMISSION ASS'Y,(D31S) | 1 | SN: 40068-40254 |
|||
| ? | □113-15-00602 | TRANSMISSION ASS'Y,(D31Q) | 1 | SN: 40239-40404 |
|||
| ? | □113-15-00601 | TRANSMISSION ASS'Y,(D31Q) | 1 | SN: 40068-40238 |
|||
| ? | □113-15-00600 | TRANSMISSION ASS'Y | 1 | SN: 40001-40067 |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2501 TO 2561. | ||||||
| ? | 114-15-00313 | • TRANSMISSION ASS'Y | 1 | SN: 40405- |
|||
| ? | 113-15-00611 | • TRANSMISSION ASS'Y,(D31S) | 1 | SN: 40255-40404 |
|||
| ? | 113-15-00610 | • TRANSMISSION ASS'Y,(D31S) | 1 | SN: 40001-40254 |
|||
| ? | 113-15-00611 | • TRANSMISSION ASS'Y,(D31Q) | 1 | SN: 40239-40404 |
|||
| ? | 113-15-00610 | • TRANSMISSION ASS'Y,(D31Q) | 1 | SN: 40001-40238 |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2501 TO 2505 AND 2507. | ||||||
| ? | 113-15-21110 | • • CASE | 1 | SN: 40001- |
|||
| ? | 07044-12412 | • • PLUG | 1 | SN: 40001- |
|||
| ? | 07002-02434 | • • O-RING (K1) | 1 | SN: 40001- |
|||
| ? | 07049-01215 | • • PLUG | 2 | SN: 40001- |
|||
| ? | 07030-00252 | • • BREATHER | 1 | SN: 40001- |
|||
| ? | 113-15-21310 | • • SLEEVE | 6 | SN: 40001- |
|||
| ? | 07000-72012 | • • O-RING (K1) | 6 | SN: 40001- |
|||
| ? | 07000-72010 | • • O-RING (K1) | 6 | SN: 40001- |
|||
| ? | 113-15-21711 | • • CASE | 1 | SN: 40001- |
|||
| ? | 113-15-21720 | • • GASKET (K1) | 1 | SN: 40001- |
|||
| ? | 113-15-21730 | • • SCREEN | 1 | SN: 40001- |
|||
| ? | 01010-50825 | • • BOLT | 3 | SN: 40001- |
|||
| ? | 01602-20825 | • • WASHER,SPRING | 3 | SN: 40001- |
|||
| ? | 113-15-21751 | • • COVER | 1 | SN: 40001- |
|||
| ? | 07000-02095 | • • O-RING (K1) | 1 | SN: 40001- |
|||
| ? | 01010-50820 | • • BOLT | 2 | SN: 40001- |
|||
| ? | 01602-20825 | • • WASHER,SPRING | 2 | SN: 40001- |
|||
| ? | 103-15-21760 | • • SLEEVE | 1 | SN: 40001- |
|||
| ? | 07000-73028 | • • O-RING (K1) | 2 | SN: 40001- |
|||
| ? | 113-15-38111 | • • FILLER | 1 | SN: 40001- |
|||
| ? | 07000-03035 | • • O-RING (K1) | 1 | SN: 40001- |
|||
| ? | 01010-51030 | • • BOLT | 2 | SN: 40001- |
|||
| ? | 01602-21030 | • • WASHER,SPRING | 2 | SN: 40001- |
|||
| ? | 113-21-31260 | • • GAUGE | 1 | SN: 40001- |
|||
| ? | 07000-03022 | • • O-RING (K1) | 2 | SN: 40001- |
|||
| ? | 09608-05080 | • • PLATE¤ NAME,(LIMITED SUPPLY) | 1 | SN: 40001- |
|||
| ? | 04418-03060 | • • SCREW | 4 | SN: 40001- |
|||
| ? | 01010-51465 | • • BOLT | 2 | SN: 40001- |
|||
| ? | 01640-21426 | • • WASHER | 2 | SN: 40001- |
|||
| ? | (114-15-00320) | • TRANSFER ASS'Y | 1 | SN: 40405- |
|||
| ? | (113-15-00620) | • TRANSFER ASS'Y | 1 | SN: 40001-40404 |
|||
| ? | 113-15-21120 | • GASKET (K1) | 1 | SN: 40001- |
|||
| ? | 01010-51030 | • BOLT | 12 | SN: 40001- |
|||
| ? | 01602-21030 | • WASHER,SPRING | 12 | SN: 40001- |
|||
| ? | 07000-05280 | O-RING (K1) | 1 | SN: 40001- |
|||
| ? | 04020-01228 | PIN,DOWEL | 1 | SN: 40001- |
|||
| ? | 01010-51435 | BOLT | 10 | SN: 40001- |
|||
| ? | 01602-21442 | WASHER,SPRING | 10 | SN: 40001- |
