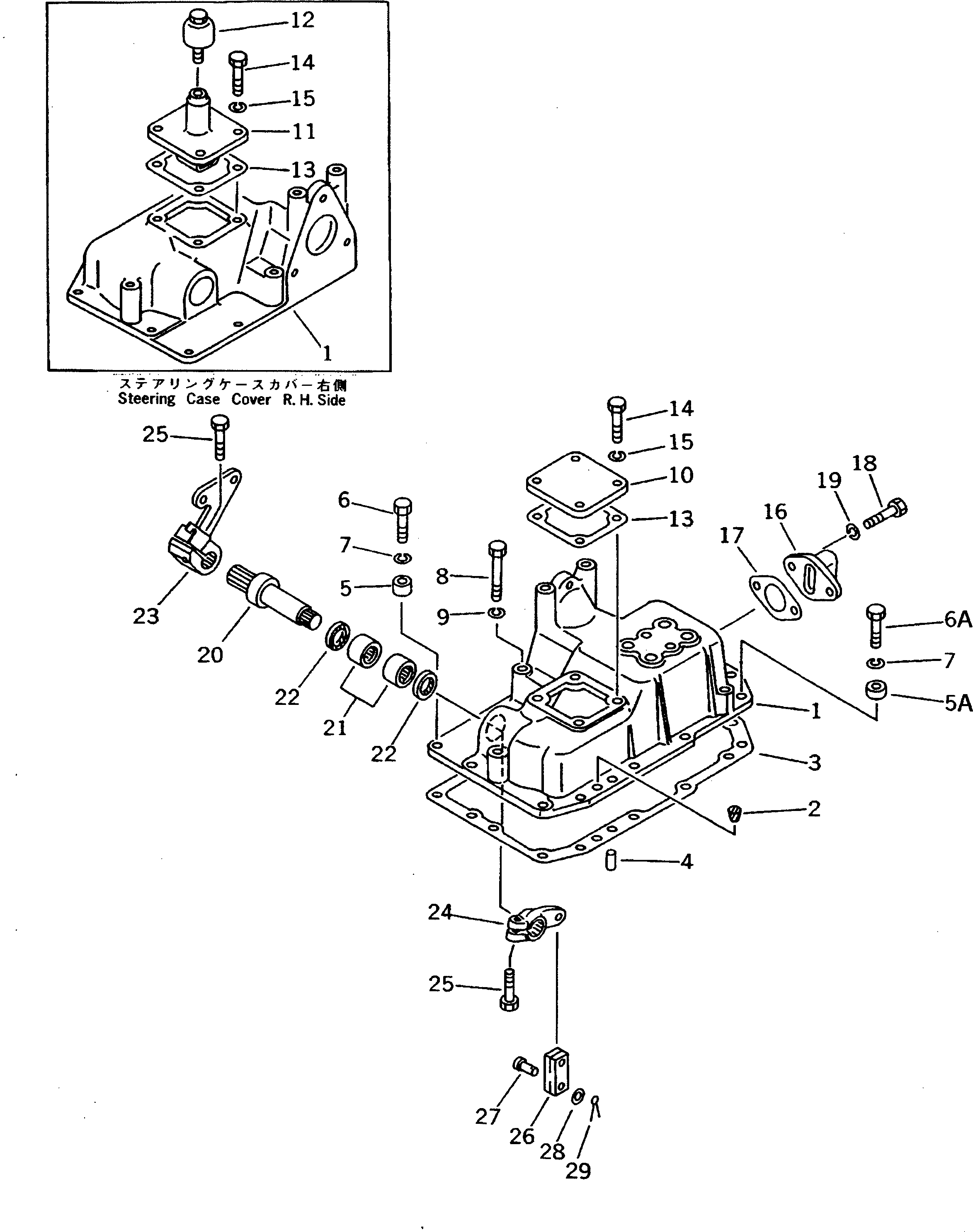

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 113-33-00012 | COVER ASS'Y,L.H. | 1 | SN: 41130- |
|||
| ? | 113-33-00011 | COVER ASS'Y,L.H. | 1 | SN: 41001-41129 |
|||
| ? | 113-33-00022 | COVER ASS'Y,R.H. | 1 | SN: 41130- |
|||
| ? | 113-33-00021 | COVER ASS'Y,R.H. | 1 | SN: 41001-41129 |
|||
| ? | ☆ | • COVER,L.H. | 1 | SN: 41130- |
|||
| ? | ☆ | • COVER,L.H. | 1 | SN: 41001-41129 |
|||
| ? | ☆ | • COVER,R.H. | 1 | SN: 41130- |
|||
| ? | ☆ | • COVER,R.H. | 1 | SN: 41001-41129 |
|||
| ? | 07049-01012 | • PLUG | 2 | SN: 41001- |
|||
| ? | 113-33-32253 | GASKET | 2 | SN: 41130- |
|||
| ? | 113-33-32252 | GASKET | 2 | SN: 41055-41129 |
|||
| ? | □113-33-32251 | GASKET | 2 | SN: 41001-41054 |
|||
| ? | 113-33-22180 | PIN,DOWEL | 4 | SN: 41001- |
|||
| ? | 198-43-15310 | COLLAR ? 10MM | 8 | SN: 41130- |
|||
| ? | 581-95-19870 | BOSS | 8 | SN: 41001-41129 |
|||
| ? | 198-43-15310 | COLLAR ? 10MM | 14 | SN: 41130- |
|||
| ? | 103-21-31260 | BOSS | 14 | SN: 41001-41129 |
|||
| ? | 01010-81245 | BOLT | 8 | SN: 41130- |
|||
| ? | 01010-81040 | BOLT | 8 | SN: 41001-41129 |
|||
| ? | 01010-81245 | BOLT | 14 | SN: 41130- |
|||
| ? | 01010-81055 | BOLT | 14 | SN: 41001-41129 |
|||
| ? | 01602-21236 | WASHER,SPRING | 22 | SN: 41130- |
|||
| ? | 01602-21030 | WASHER,SPRING | 22 | SN: 41001-41129 |
|||
| ? | 01010-81270 | BOLT | 8 | SN: 41130- |
|||
| ? | 01010-81065 | BOLT | 8 | SN: 41001-41129 |
|||
| ? | 01602-21236 | WASHER,SPRING | 8 | SN: 41130- |
|||
| ? | 01602-21030 | WASHER,SPRING | 8 | SN: 41001-41129 |
|||
| ? | 113-33-32260 | COVER,L.H. | 1 | SN: 41001- |
|||
| ? | 113-33-32280 | COVER,R.H. | 1 | SN: 41001- |
|||
| ? | 07030-00252 | BREATHER | 1 | SN: 41001- |
|||
| ? | 113-33-32271 | GASKET | 2 | SN: 41055- |
|||
| ? | □113-33-32270 | GASKET | 2 | SN: 41001-41054 |
|||
| ? | 01010-81025 | BOLT | 8 | SN: 41001- |
|||
| ? | 01602-21030 | WASHER,SPRING | 8 | SN: 41001- |
|||
| ? | 113-33-49111 | CAP | 2 | SN: 41130- |
|||
| ? | 113-33-49110 | CAP | 2 | SN: 41001-41129 |
|||
| ? | 113-33-22350 | GASKET | 2 | SN: 41130- |
|||
| ? | 113-33-22171 | GASKET | 2 | SN: 41055-41129 |
|||
| ? | □113-33-22170 | GASKET | 2 | SN: 41001-41054 |
|||
| ? | 01010-81230 | BOLT | 2 | SN: 41130- |
|||
| ? | 01010-81025 | BOLT | 2 | SN: 41001-41129 |
|||
| ? | 01010-81255 | BOLT | 2 | SN: 41130- |
|||
| ? | 01010-81050 | BOLT | 2 | SN: 41001-41129 |
|||
| ? | 01602-21236 | WASHER,SPRING | 4 | SN: 41130- |
|||
| ? | 01602-21030 | WASHER,SPRING | 4 | SN: 41001-41129 |
|||
| ? | 113-33-32130 | SHAFT,L.H. | 1 | SN: 41001- |
|||
| ? | 113-33-32140 | SHAFT,R.H. | 1 | SN: 41001- |
|||
| ? | 06120-02820 | BEARING,NEEDLE | 4 | SN: 41001- |
|||
| ? | 06122-02804 | SEAL,BEARING | 4 | SN: 41001- |
|||
| ? | 113-33-41160 | LEVER | 2 | SN: 41001- |
|||
| ? | 06600-01008 | • BUSHING | 1 | SN: 41001- |
|||
| ? | 06600-01210 | • BUSHING | 1 | SN: 41001- |
|||
| ? | 113-33-22251 | LEVER | 2 | SN: 41001- |
|||
| ? | 01010-80830 | BOLT | 4 | SN: 41001- |
|||
| ? | 113-33-22240 | YOKE | 2 | SN: 41001- |
|||
| ? | 04205-11032 | PIN | 4 | SN: 41001- |
|||
| ? | 01641-21016 | WASHER | 4 | SN: 41001- |
|||
| ? | 04050-13015 | PIN,COTTER | SN: 41001- |
