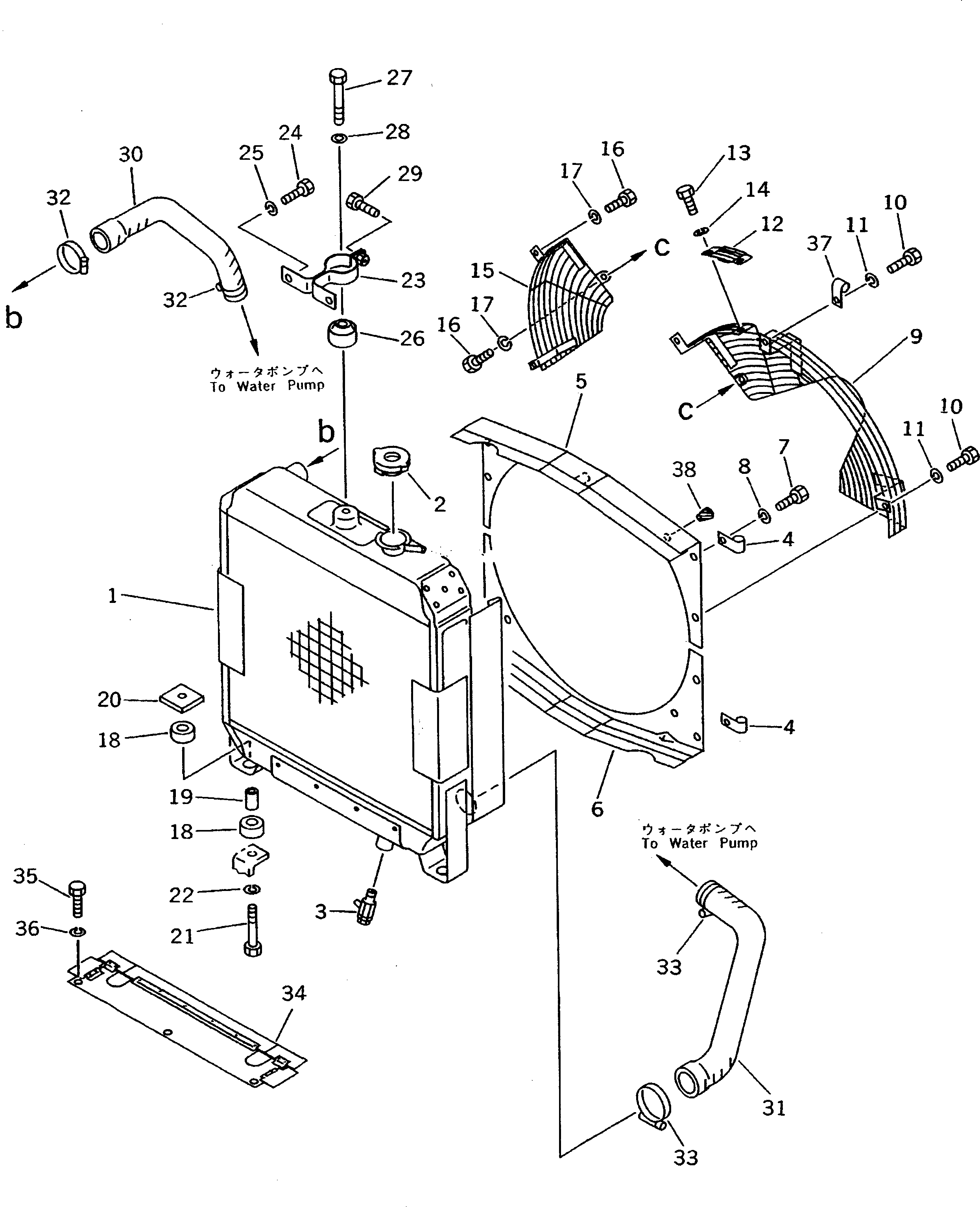

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 113-03-41710 | CORE ASS'Y | 1 | SN: 41001-41183 |
|||
| ? | 114-03-48160 | CAP | 1 | SN: 41001-41183 |
|||
| ? | 07730-10003 | VALVE | 1 | SN: 41001-41183 |
|||
| ? | 281-03-12620 | CLAMP | 2 | SN: 41001-41183 |
|||
| ? | 114-03-48380 | SHROUD,UPPER | 1 | SN: 41140-41183 |
|||
| ? | 114-03-48390 | SHROUD,LOWER | 1 | SN: 41140-41183 |
|||
| ? | 01010-51025 | BOLT | 5 | SN: 41140-41183 |
|||
| ? | 01602-21030 | WASHER,SPRING | 5 | SN: 41140-41183 |
|||
| ? | 114-03-48350 | NET,WIRE | 1 | SN: 41140-41183 |
|||
| ? | 01010-51025 | BOLT | 3 | SN: 41001-41183 |
|||
| ? | 01602-21030 | WASHER,SPRING | 3 | SN: 41001-41183 |
|||
| ? | 114-03-48330 | NET,WIRE | 1 | SN: 41140-41183 |
|||
| ? | 01010-51020 | BOLT | 2 | SN: 41140-41183 |
|||
| ? | 01602-21030 | WASHER,SPRING | 2 | SN: 41140-41183 |
|||
| ? | 114-03-48321 | NET,WIRE | 1 | SN: 41140-41183 |
|||
| ? | 01010-51025 | BOLT | 3 | SN: 41140-41183 |
|||
| ? | 01602-21030 | WASHER,SPRING | 3 | SN: 41001-41183 |
|||
| ? | 113-03-21160 | SEAT | 4 | SN: 41001-41183 |
|||
| ? | 113-03-21170 | SPACER | 2 | SN: 41001-41183 |
|||
| ? | 113-03-21180 | PLATE | 2 | SN: 41001-41183 |
|||
| ? | 01010-51060 | BOLT | 2 | SN: 41001-41183 |
|||
| ? | 01602-21030 | WASHER,SPRING | 2 | SN: 41001-41183 |
|||
| ? | 113-03-41191 | BRACKET | 1 | SN: 41001-41183 |
|||
| ? | 01010-51025 | BOLT | 2 | SN: 41001-41183 |
|||
| ? | 01602-21030 | WASHER,SPRING | 2 | SN: 41001-41183 |
|||
| ? | 135-03-12110 | DAMPER | 1 | SN: 41001-41183 |
|||
| ? | 01010-51460 | BOLT | 1 | SN: 41001-41183 |
|||
| ? | 01602-21442 | WASHER,SPRING | 1 | SN: 41001-41183 |
|||
| ? | 01010-51030 | BOLT | 1 | SN: 41001-41183 |
|||
| ? | 114-03-41140 | HOSE,INLET | 1 | SN: 41001-41183 |
|||
| ? | 113-03-41150 | HOSE,OUTLET | 1 | SN: 41001-41183 |
|||
| ? | 207-09-11110 | CLAMP | 2 | SN: 41001-41183 |
|||
| ? | 208-09-11110 | CLAMP | 2 | SN: 41001-41183 |
|||
| ? | 114-03-41171 | BAFFLE | 1 | SN: 41001-41183 |
|||
| ? | 01010-51025 | BOLT | 3 | SN: 41001-41183 |
|||
| ? | 01602-21030 | WASHER,SPRING | 3 | SN: 41001-41183 |
|||
| ? | 08036-91214 | CLIP | 1 | SN: 41001-41183 |
|||
| ? | 07049-01012 | PLUG | 1 | SN: 41001-41183 |
