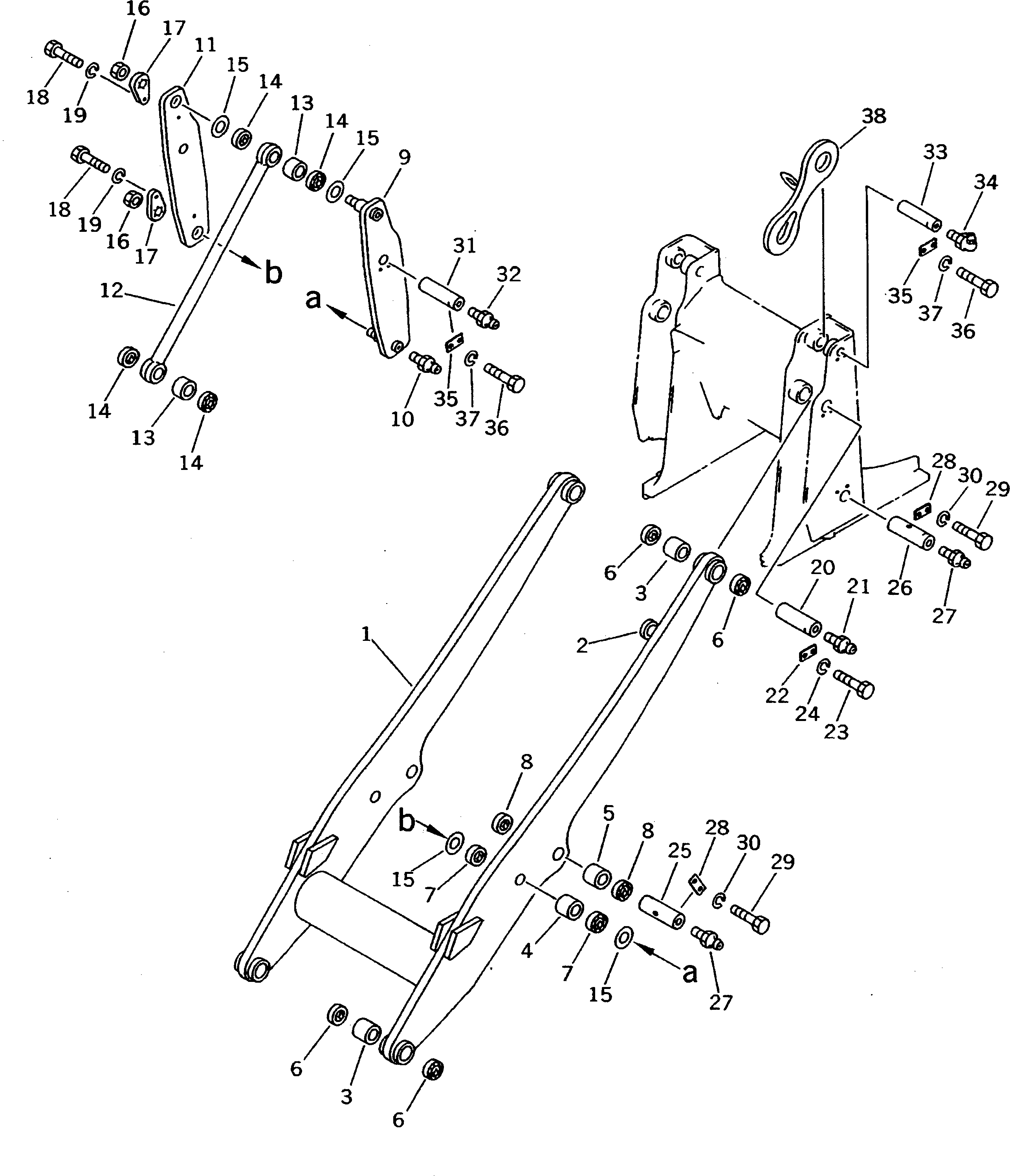

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 113-70-00100 | LIFT ARM ASS'Y | 1 | SN: 41001- |
|||
| ? | 113-Y23-0020 | LIFT ARM ASS'Y,(FOR MULTI PURPOSE BUCKET) | 1 | SN: 41001- |
|||
| ? | ☆ | • ARM | 1 | SN: 41001- |
|||
| ? | ☆ | • ARM,(FOR MULTI PURPOSE BUCKET) | 1 | SN: 41001- |
|||
| ? | 113-70-31120 | • • BOSS (WELDED) | 1 | SN: 41001- |
|||
| ? | 125-70-31241 | • BUSHING | 4 | SN: 41001- |
|||
| ? | 113-70-21220 | • BUSHING | 2 | SN: 41001- |
|||
| ? | 113-70-21190 | • BUSHING | 2 | SN: 41001- |
|||
| ? | 130-09-12931 | SEAL,DUST | 8 | SN: 41001- |
|||
| ? | 111-92-11220 | SEAL,DUST | 4 | SN: 41001- |
|||
| ? | 07145-00050 | SEAL,DUST | 4 | SN: 41001- |
|||
| ? | 113-70-31140 | LEVER,OUTER¤ L.H. | 1 | SN: 41001- |
|||
| ? | 113-70-31150 | LEVER,OUTER¤ R.H. | 1 | SN: 41001- |
|||
| ? | 113-70-21181 | • PIN (WELDED) | 2 | SN: 41001- |
|||
| ? | 07020-00000 | FITTING,GREASE | 4 | SN: 41001- |
|||
| ? | 113-70-31160 | LEVER,INNER¤ L.H. | 1 | SN: 41001- |
|||
| ? | 113-70-31170 | LEVER,INNER¤ R.H. | 1 | SN: 41001- |
|||
| ? | 113-70-00030 | TILT ROD ASS'Y | 2 | SN: 41001- |
|||
| ? | 113-Z23-0050 | TILT ROD ASS'Y,L.H.(FOR MULTI PURPOSE BUCKET) | 1 | SN: 41001- |
|||
| ? | 113-70-00030 | TILT ROD ASS'Y,R.H.(FOR MULTI PURPOSE BUCKET) | 1 | SN: 41001- |
|||
| ? | ☆ | • ROD | 1 | SN: 41001- |
|||
| ? | ☆ | • ROD,L.H.(FOR MULTI PURPOSE BUCKET) | 1 | SN: 41001- |
|||
| ? | 09245-50060 | • • HOOK,L.H.(FOR MULTI PURPOSE BUCKET) (WELDED) | 1 | SN: 41001- |
|||
| ? | ☆ | • ROD,R.H.(FOR MULTI PURPOSE BUCKET) | 1 | SN: 41001- |
|||
| ? | 09245-50060 | • HOOK,R.H.(FOR MULTI PURPOSE BUCKET) (WELDED) | 1 | SN: 41001- |
|||
| ? | 113-70-21220 | • BUSHING | 2 | SN: 41001- |
|||
| ? | 111-92-11220 | SEAL,DUST | 8 | SN: 41001- |
|||
| ? | 113-70-21250 | SHIM¤ 1.6MM | 12 | SN: 41001- |
|||
| ? | 113-70-21260 | NUT | 4 | SN: 41001- |
|||
| ? | 113-70-21270 | LOCK | 4 | SN: 41001- |
|||
| ? | 01010-51025 | BOLT | 4 | SN: 41001- |
|||
| ? | 01602-21030 | WASHER,SPRING | 4 | SN: 41001- |
|||
| ? | 113-70-23131 | PIN | 2 | SN: 41001- |
|||
| ? | 07020-00000 | FITTING,GREASE | 2 | SN: 41001- |
|||
| ? | 113-70-21280 | LOCK | 2 | SN: 41001- |
|||
| ? | 01010-51025 | BOLT | 4 | SN: 41001- |
|||
| ? | 01602-21030 | WASHER,SPRING | 4 | SN: 41001- |
|||
| ? | 113-70-21241 | PIN | 2 | SN: 41001- |
|||
| ? | 113-70-23131 | PIN | 2 | SN: 41001- |
|||
| ? | 07020-00000 | FITTING,GREASE | 4 | SN: 41001- |
|||
| ? | 113-70-21280 | LOCK | 4 | SN: 41001- |
|||
| ? | 01010-51025 | BOLT | 8 | SN: 41001- |
|||
| ? | 01602-21030 | WASHER,SPRING | 8 | SN: 41001- |
|||
| ? | 113-70-21231 | PIN | 2 | SN: 41001- |
|||
| ? | 07020-00000 | FITTING,GREASE | 2 | SN: 41001- |
|||
| ? | 113-70-23142 | PIN | 2 | SN: 41001- |
|||
| ? | 07020-00900 | FITTING,GREASE | 2 | SN: 41001- |
|||
| ? | 113-70-21280 | LOCK | 4 | SN: 41001- |
|||
| ? | 01010-51025 | BOLT | 8 | SN: 41001- |
|||
| ? | 01602-21030 | WASHER,SPRING | 8 | SN: 41001- |
|||
| ? | 113-70-34110 | LEVER,LOCK | 1 | SN: 41001- |
