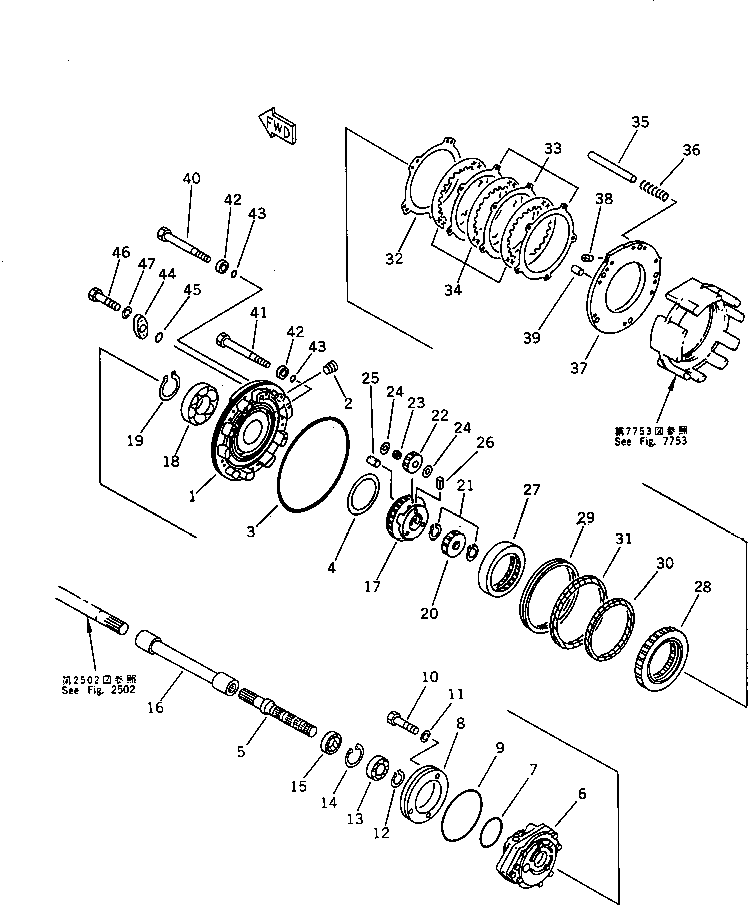

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 104-15-00160 | HOUSING ASS'Y | 1 | SN: 40001- |
|||
| ? | ☆ | • HOUSING | 1 | SN: 40001- |
|||
| ? | 07043-00108 | • PLUG | 1 | SN: 40001- |
|||
| ? | 07000-05270 | O-RING | 1 | SN: 40001- |
|||
| ? | 07018-01305 | RING,SEAL | 1 | SN: 40001- |
|||
| ? | 114-Z60-1211 | SHAFT | 1 | SN: 40001- |
|||
| ? | (114-Z60-0240) | PUMP ASS'Y,(SEE FIG.7757) | 1 | SN: 40001- |
|||
| ? | 07000-02085 | O-RING | 1 | SN: 40001- |
|||
| ? | 114-Z60-3360 | PLATE | 1 | SN: 40001- |
|||
| ? | 07000-02140 | O-RING | 1 | SN: 40001- |
|||
| ? | 01010-50830 | BOLT | 3 | SN: 40001- |
|||
| ? | 01602-20825 | WASHER,SPRING | 3 | SN: 40001- |
|||
| ? | 113-15-22950 | RING,SNAP | 1 | SN: 40001- |
|||
| ? | 06000-06206 | BEARING | 1 | SN: 40001- |
|||
| ? | 04065-06220 | RING,SNAP | 1 | SN: 40001- |
|||
| ? | 07012-10040 | SEAL,OIL | 1 | SN: 40001- |
|||
| ? | 114-Z60-1110 | COUPLING | 1 | SN: 40001- |
|||
| ? | 104-15-22310 | CARRIER | 1 | SN: 40001- |
|||
| ? | 06000-06913 | BEARING | 1 | SN: 40001- |
|||
| ? | 04064-06525 | RING,SNAP | 1 | SN: 40001- |
|||
| ? | 104-15-22210 | GEAR | 1 | SN: 40001- |
|||
| ? | 113-15-22950 | RING,SNAP | 2 | SN: 40001- |
|||
| ? | 104-15-22410 | GEAR | 3 | SN: 40001- |
|||
| ? | 103-15-29420 | BEARING | 3 | SN: 40001- |
|||
| ? | 113-15-22560 | WASHER | 6 | SN: 40001- |
|||
| ? | 114-Z60-1281 | SHAFT | 3 | SN: 40001- |
|||
| ? | 04025-00312 | PIN,SPRING | 3 | SN: 40001- |
|||
| ? | 104-15-22610 | GEAR,RING | 1 | SN: 40001- |
|||
| ? | 104-15-22620 | GEAR,RING | 1 | SN: 40001- |
|||
| ? | 103-15-22750 | PISTON | 1 | SN: 40001- |
|||
| ? | 103-15-29260 | SEAL,RING | 1 | SN: 40001- |
|||
| ? | 113-15-29250 | RING,SEAL | 1 | SN: 40001- |
|||
| ? | 113-15-22720 | PLATE | 1 | SN: 40001- |
|||
| ? | 113-15-22730 | PLATE | 3 | SN: 40001- |
|||
| ? | 113-15-22711 | DISC | 3 | SN: 40001- |
|||
| ? | 114-Z60-1421 | PIN | 5 | SN: 40001- |
|||
| ? | 114-Z60-1631 | SPRING | 5 | SN: 40001- |
|||
| ? | 114-Z60-0200 | PLATE ASS'Y | 1 | SN: 40001- |
|||
| ? | ☆ | • PLATE | 1 | SN: 40001- |
|||
| ? | 145-14-11320 | • PLUG | 2 | SN: 40001- |
|||
| ? | 113-15-21290 | PIN,DOWEL | 2 | SN: 40001- |
|||
| ? | 114-Z60-1720 | BOLT | 1 | SN: 40001- |
|||
| ? | 114-Z60-1710 | BOLT | 4 | SN: 40001- |
|||
| ? | 113-15-21260 | WASHER | 5 | SN: 40001- |
|||
| ? | 07000-01008 | O-RING | 5 | SN: 40001- |
|||
| ? | 07336-50516 | FLANGE | 1 | SN: 40001- |
|||
| ? | 07000-03025 | O-RING | 1 | SN: 40001- |
|||
| ? | 01010-51030 | BOLT | 2 | SN: 40001- |
|||
| ? | 01602-21030 | WASHER,SPRING | 2 | SN: 40001- |
