| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 700-84-31001 | VALVE ASS'Y | 1 | SN: 40001- |
|||

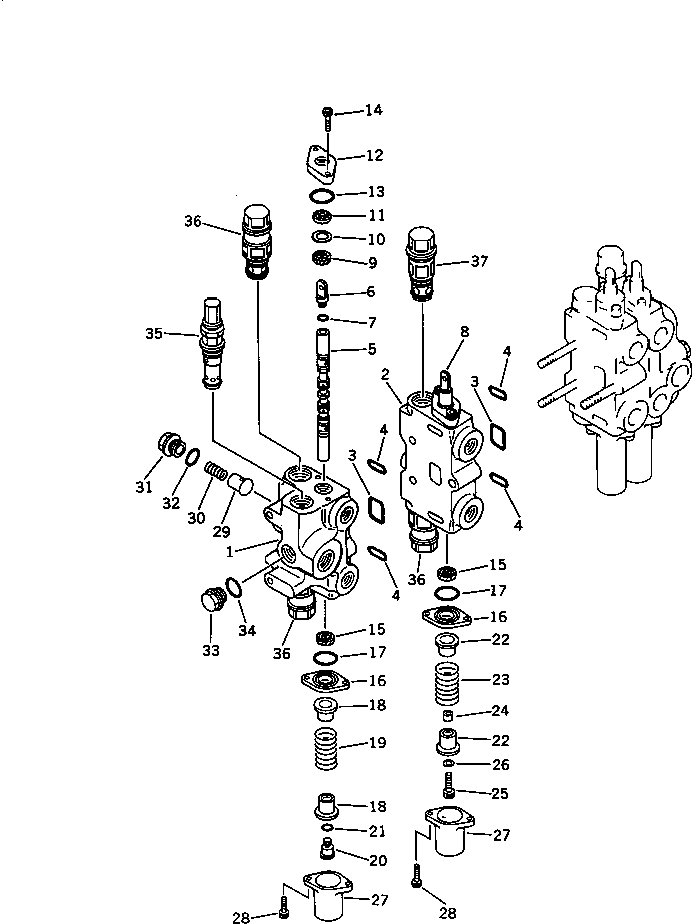

| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6221 TO 6223. | ||||||
| ? | ☆ | • BODY | 1 | SN: 40001- |
|||
| ? | ☆ | • BLOCK | 1 | SN: 40001- |
|||
| ? | 07000-13050 | • O-RING | 2 | SN: 40001- |
|||
| ? | 07000-03030 | • O-RING | 4 | SN: 40001- |
|||
| ? | ☆ | • SPOOL | 1 | SN: 40001- |
|||
| ? | 700-84-11870 | • JOINT | 1 | SN: 40001- |
|||
| ? | 07002-11223 | • O-RING | 1 | SN: 40001- |
|||
| ? | ☆ | • SPOOL | 1 | SN: 40001- |
|||
| ? | 700-84-11232 | • U-PACKING | 2 | SN: 40001- |
|||
| ? | 700-84-11290 | • COLLAR | 2 | SN: 40001- |
|||
| ? | 700-84-11820 | • SEAL,DUST | 2 | SN: 40001- |
|||
| ? | 700-84-11310 | • PLATE | 2 | SN: 40001- |
|||
| ? | 700-84-11240 | • O-RING | 2 | SN: 40001- |
|||
| ? | 01252-30620 | • BOLT | 4 | SN: 40001- |
|||
| ? | 700-84-11232 | • U-PACKING | 2 | SN: 40001- |
|||
| ? | 700-84-11620 | • PLATE | 2 | SN: 40001- |
|||
| ? | 700-84-11240 | • O-RING | 2 | SN: 40001- |
|||
| ? | 700-84-11890 | • RETAINER | 2 | SN: 40001- |
|||
| ? | 700-84-11650 | • SPRING | 1 | SN: 40001- |
|||
| ? | 700-84-11880 | • PLUG | 1 | SN: 40001- |
|||
| ? | 07002-11223 | • O-RING | 1 | SN: 40001- |
|||
| ? | 700-84-11630 | • RETAINER | 2 | SN: 40001- |
|||
| ? | 700-84-11850 | • SPRING | 1 | SN: 40001- |
|||
| ? | 700-84-11640 | • COLLAR | 1 | SN: 40001- |
|||
| ? | 01252-30830 | • BOLT | 1 | SN: 40001- |
|||
| ? | 01643-30823 | • WASHER | 1 | SN: 40001- |
|||
| ? | 700-84-11390 | • COVER | 2 | SN: 40001- |
|||
| ? | 01252-30625 | • BOLT | 4 | SN: 40001- |
|||
| ? | 700-42-31460 | • VALVE | 2 | SN: 40001- |
|||
| ? | 700-72-31470 | • SPRING | 2 | SN: 40001- |
|||
| ? | 700-84-11320 | • PLUG | 2 | SN: 40001- |
|||
| ? | 07002-13034 | • O-RING | 2 | SN: 40001- |
|||
| ? | 700-22-11370 | • PLUG | 1 | SN: 40001- |
|||
| ? | 07002-12434 | • O-RING | 1 | SN: 40001- |
|||
| ? | (700-82-57000) | • VALVE ASS'Y,MAIN RELIEF | 1 | SN: 40001- |
|||
| ? | (700-80-69002) | • VALVE ASS'Y,SUCTION AND SAFETY | 3 | SN: 40001- |
|||
| ? | (700-80-68002) | • VALVE ASS'Y,SUCTION AND SAFETY | 1 | SN: 40001- |
