| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

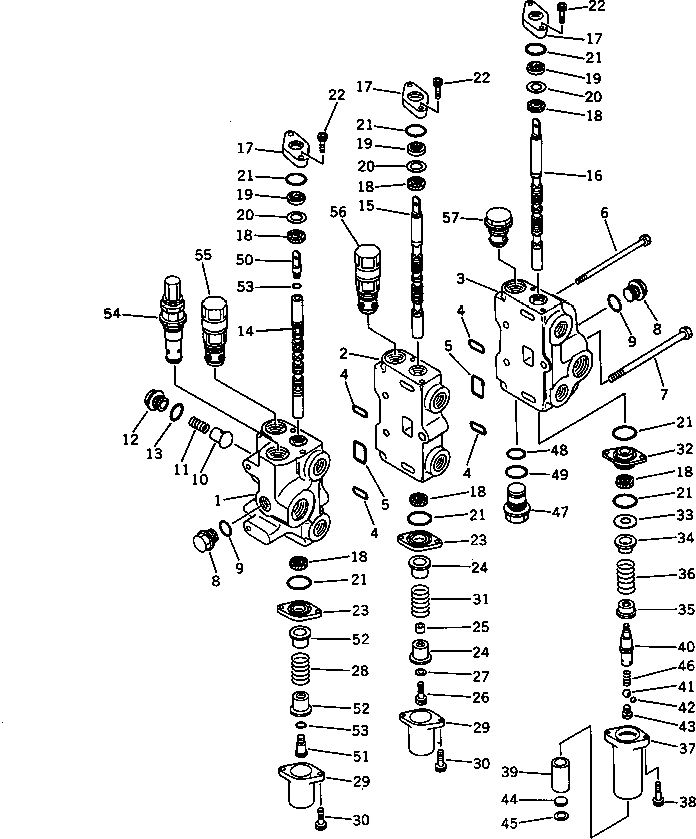

| ? | 700-83-23000 | VALVE ASS'Y | 1 | SN: 40001- |
|||
| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6211 AND 6212. | ||||||
| ? | ☆ | • BODY | 1 | SN: 40001- |
|||
| ? | ☆ | • BLOCK | 1 | SN: 40001- |
|||
| ? | ☆ | • COVER | 1 | SN: 40001- |
|||
| ? | 07000-03030 | • O-RING | 4 | SN: 40001- |
|||
| ? | 07000-13050 | • O-RING | 2 | SN: 40001- |
|||
| ? | 700-83-11212 | • BOLT | 2 | SN: 40001- |
|||
| ? | 700-83-11222 | • BOLT | 1 | SN: 40001- |
|||
| ? | 700-22-11370 | • PLUG | 2 | SN: 40001- |
|||
| ? | 07002-12434 | • O-RING | 2 | SN: 40001- |
|||
| ? | 700-42-31460 | • VALVE | 3 | SN: 40001- |
|||
| ? | 700-42-31470 | • SPRING | 3 | SN: 40001- |
|||
| ? | 700-84-11320 | • PLUG | 3 | SN: 40001- |
|||
| ? | 07002-13034 | • O-RING | 3 | SN: 40001- |
|||
| ? | ☆ | • SPOOL,MULTI PURPOSE BUCKET | 1 | SN: 40001- |
|||
| ? | ☆ | • SPOOL,DUMP | 1 | SN: 40001- |
|||
| ? | ☆ | • SPOOL,LIFT | 1 | SN: 40001- |
|||
| ? | 700-84-11310 | • PLATE | 3 | SN: 40001- |
|||
| ? | 700-84-11232 | • U-PACKING | 6 | SN: 40001- |
|||
| ? | 700-84-11820 | • SEAL,DUST | 3 | SN: 40001- |
|||
| ? | 700-84-11290 | • COLLAR | 3 | SN: 40001- |
|||
| ? | 700-84-11240 | • O-RING | 7 | SN: 40001- |
|||
| ? | 01252-30620 | • BOLT | 6 | SN: 40001- |
|||
| ? | 700-84-11620 | • PLATE | 2 | SN: 40001- |
|||
| ? | 700-84-11630 | • RETAINER | 2 | SN: 40001- |
|||
| ? | 700-84-11640 | • COLLAR | 1 | SN: 40001- |
|||
| ? | 01252-30830 | • BOLT | 1 | SN: 40001- |
|||
| ? | 01643-30823 | • WASHER | 1 | SN: 40001- |
|||
| ? | 700-84-11650 | • SPRING | 1 | SN: 40001- |
|||
| ? | 700-84-11390 | • COVER | 2 | SN: 40001- |
|||
| ? | 01252-30625 | • BOLT | 4 | SN: 40001- |
|||
| ? | 700-84-11850 | • SPRING | 1 | SN: 40001- |
|||
| ? | 700-82-11460 | • PLATE | 1 | SN: 40001- |
|||
| ? | 700-82-11270 | • SPACER | 1 | SN: 40001- |
|||
| ? | 700-82-11440 | • RETAINER | 1 | SN: 40001- |
|||
| ? | 700-82-11450 | • RETAINER | 1 | SN: 40001- |
|||
| ? | 700-84-11770 | • SPRING | 1 | SN: 40001- |
|||
| ? | 700-82-11420 | • CASE | 1 | SN: 40001- |
|||
| ? | 01252-30630 | • BOLT | 2 | SN: 40001- |
|||
| ? | 700-82-11410 | • DETENT | 1 | SN: 40001- |
|||
| ? | 700-82-11430 | • PLUG | 1 | SN: 40001- |
|||
| ? | 700-82-11340 | • BALL | 1 | SN: 40001- |
|||
| ? | 700-84-11730 | • BALL | 3 | SN: 40001- |
|||
| ? | 700-21-11210 | • PLUG | 1 | SN: 40001- |
|||
| ? | 700-22-11590 | • PLATE | 1 | SN: 40001- |
|||
| ? | 700-22-11610 | • RING,SNAP | 1 | SN: 40001- |
|||
| ? | 700-82-11380 | • SPRING | 1 | SN: 40001- |
|||
| ? | 700-84-11340 | • PLUG | 1 | SN: 40001- |
|||
| ? | 700-80-61260 | • O-RING | 1 | SN: 40001- |
|||
| ? | 07002-03034 | • O-RING | 1 | SN: 40001- |
|||
| ? | 700-84-11870 | • JOINT | 1 | SN: 40001- |
|||
| ? | 700-84-11880 | • PLUG | 1 | SN: 40001- |
|||
| ? | 700-84-11890 | • RETAINER | 2 | SN: 40001- |
|||
| ? | 07002-11223 | • O-RING | 2 | SN: 40001- |
|||
| ? | (700-82-57000) | • VALVE ASS'Y | 1 | SN: 40001- |
|||
| ? | (700-80-69002) | • VALVE ASS'Y | 3 | SN: 40001- |
|||
| ? | (700-80-68002) | • VALVE ASS'Y | 1 | SN: 40001- |
|||
| ? | (700-80-87000) | • VALVE ASS'Y | 1 | SN: 40001- |
