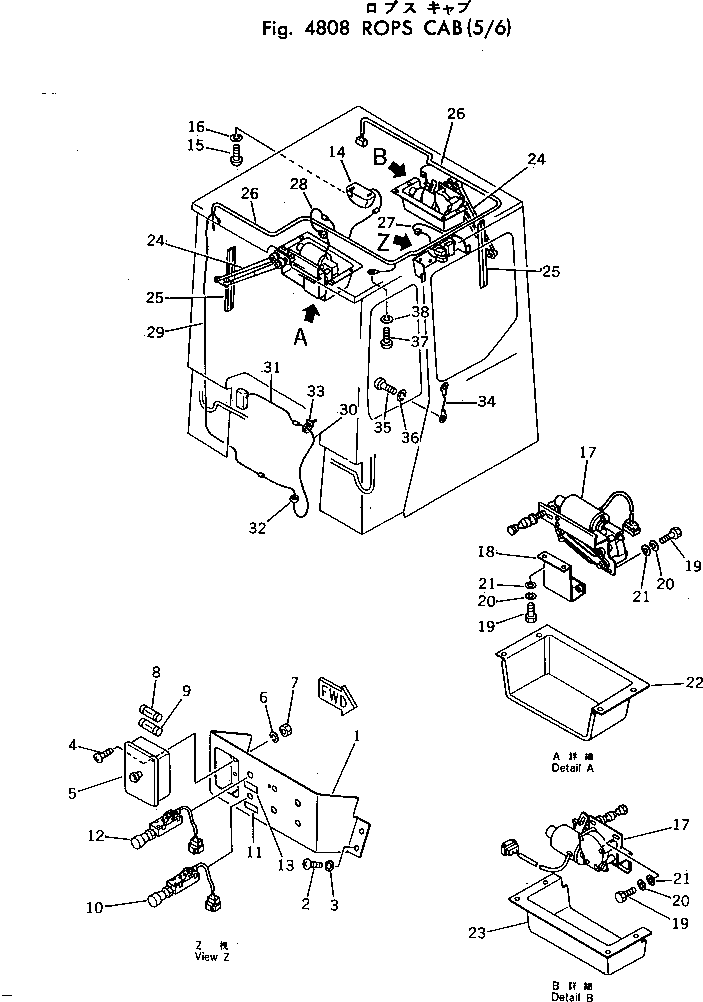

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 113-Y79-2310 | PANEL | 1 | SN: 32001- |
|||
| ? | 01220-40612 | SCREW | 4 | SN: 32001- |
|||
| ? | 01602-00619 | WASHER,SPRING | 4 | SN: 32001- |
|||
| ? | 08043-04000 | BOX,FUSE | 1 | SN: 32001- |
|||
| ? | 01220-40520 | SCREW | 2 | SN: 32001- |
|||
| ? | 01601-00513 | WASHER,SPRING | 2 | SN: 32001- |
|||
| ? | 01580-10504 | NUT | 2 | SN: 32001- |
|||
| ? | 08040-02000 | FUSE ? 20A | 2 | SN: 32001- |
|||
| ? | 08040-01000 | FUSE ? 10A | 2 | SN: 32001- |
|||
| ? | 205-06-61160 | SWITCH,FRONT WIPER | 1 | SN: 32001- |
|||
| ? | 131-915-3380 | PLATE ? OPERATING,FRONT WIPER SWITCH | 1 | SN: 32001- |
|||
| ? | 205-06-61160 | SWITCH,REAR WIPER | 1 | SN: 32001- |
|||
| ? | 131-915-3370 | PLATE ? OPERATING,REAR WIPER SWITCH | 1 | SN: 32001- |
|||
| ? | 08141-02400 | LAMP,ROOM | 1 | SN: 32001- |
|||
| ? | 01220-40616 | SCREW | 2 | SN: 32001- |
|||
| ? | 01601-00410 | WASHER,SPRING | 2 | SN: 32001- |
|||
| ? | 113-Y79-2320 | WIPER,FRONT | 1 | SN: 32001- |
|||
| ? | 113-Y79-2330 | WIPER,REAR | 1 | SN: 32001- |
|||
| ? | 113-Y79-2360 | BRACKET | 1 | SN: 32001- |
|||
| ? | 01010-30616 | BOLT | 8 | SN: 32001- |
|||
| ? | 01602-00619 | WASHER,SPRING | 8 | SN: 32001- |
|||
| ? | 01642-20608 | WASHER | 6 | SN: 32001- |
|||
| ? | 113-Y79-2340 | COVER,FRONT | 1 | SN: 32001- |
|||
| ? | 113-Y79-2350 | COVER,REAR | 1 | SN: 32001- |
|||
| ? | 08184-10550 | ARM | 2 | SN: 32001- |
|||
| ? | 08185-00400 | BLADE | 2 | SN: 32001- |
|||
| ? | 113-Y79-2410 | WIRE ASS'Y | 1 | SN: 32001- |
|||
| ? | 113-Y79-2420 | WIRE ASS'Y | 1 | SN: 32001- |
|||
| ? | 113-Y79-2430 | WIRE ASS'Y | 1 | SN: 32001- |
|||
| ? | 113-Y79-2440 | WIRE | 1 | SN: 32001- |
|||
| ? | 113-Y79-2450 | WIRE | 1 | SN: 32001- |
|||
| ? | 113-Z79-1730 | WIRE | 1 | SN: 32001- |
|||
| ? | 08037-01008 | GROMMET | 1 | SN: 32001- |
|||
| ? | 08034-00414 | BAND | 7 | SN: 32001- |
|||
| ? | 08029-05030 | WIRE,GRAUND CONNECTION | 1 | SN: 32001- |
|||
| ? | 01220-40512 | SCREW | 1 | SN: 32001- |
|||
| ? | 01601-00513 | WASHER,SPRING | 1 | SN: 32001- |
|||
| ? | 01220-40610 | SCREW | 1 | SN: 32001- |
|||
| ? | 01602-00619 | WASHER,SPRING | 1 | SN: 32001- |
