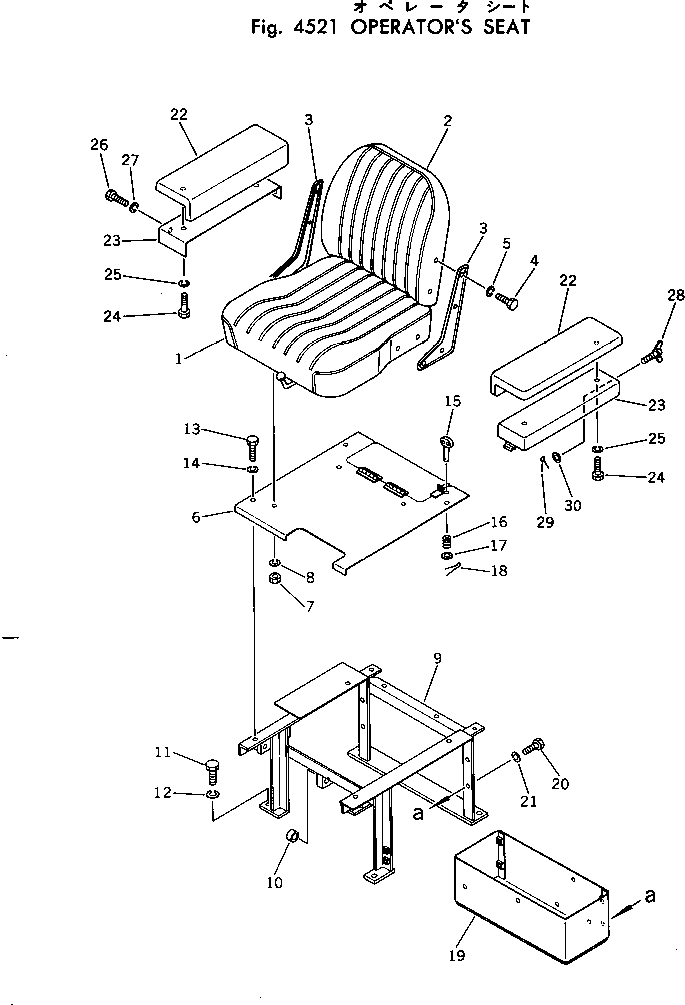

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 09403-10000 | SEAT ASS'Y | 1 | SN: 32001- |
|||
| ? | 09403-00010 | • CUSHION,SEAT | 1 | SN: 32001- |
|||
| ? | 09403-00040 | • CUSHION,BACK | 1 | SN: 32001- |
|||
| ? | 09403-00090 | • PLATE | 2 | SN: 32001- |
|||
| ? | 01010-31020 | • BOLT | 8 | SN: 32001- |
|||
| ? | 01602-01030 | • WASHER,SPRING | 8 | SN: 32001- |
|||
| ? | 113-57-31120 | PLATE | 1 | SN: 32001- |
|||
| ? | 01580-01210 | NUT | 4 | SN: 32001- |
|||
| ? | 01602-01236 | WASHER,SPRING | 4 | SN: 32001- |
|||
| ? | 113-57-00100 | FRAME ASS'Y | 1 | SN: 32001- |
|||
| ? | ☆ | • FRAME | 1 | SN: 32001- |
|||
| ? | 09350-02020 | • BUSHING | 2 | SN: 32001- |
|||
| ? | 01010-31435 | BOLT | 4 | SN: 32001- |
|||
| ? | 01602-01442 | WASHER,SPRING | 4 | SN: 32001- |
|||
| ? | 01010-31025 | BOLT | 4 | SN: 32001- |
|||
| ? | 01602-01030 | WASHER,SPRING | 4 | SN: 32001- |
|||
| ? | 09459-00000 | LOCK | 1 | SN: 32001- |
|||
| ? | 09459-11033 | • LOCK | 1 | SN: 32001- |
|||
| ? | 09459-01614 | • SPRING | 1 | SN: 32001- |
|||
| ? | 01642-01016 | • WASHER | 1 | SN: 32001- |
|||
| ? | 04050-03015 | • PIN,COTTER | 1 | SN: 32001- |
|||
| ? | 113-57-31130 | BOX,TOOL | 1 | SN: 32001- |
|||
| ? | 01010-31025 | BOLT | 4 | SN: 32001- |
|||
| ? | 01602-01030 | WASHER,SPRING | 4 | SN: 32001- |
|||
| ? | 144-57-11150 | REST,ARM | 2 | SN: 32001- |
|||
| ? | 113-57-31140 | COVER,L.H. | 1 | SN: 32001- |
|||
| ? | 113-57-31150 | COVER,R.H. | 1 | SN: 32001- |
|||
| ? | 01010-30820 | BOLT | 4 | SN: 32001- |
|||
| ? | 01602-00825 | WASHER,SPRING | 4 | SN: 32001- |
|||
| ? | 01010-31025 | BOLT | 2 | SN: 32001- |
|||
| ? | 01602-01030 | WASHER,SPRING | 2 | SN: 32001- |
|||
| ? | 01434-10830 | BOLT ? WING,WING | 1 | SN: 32001- |
|||
| ? | 04050-12015 | PIN | 1 | SN: 32001- |
|||
| ? | 01642-20810 | WASHER | 1 | SN: 32001- |
