Содержание Wheel Loaders Komatsu WA380-DZ-3 Serial No.10580 and up(wa3803cn)

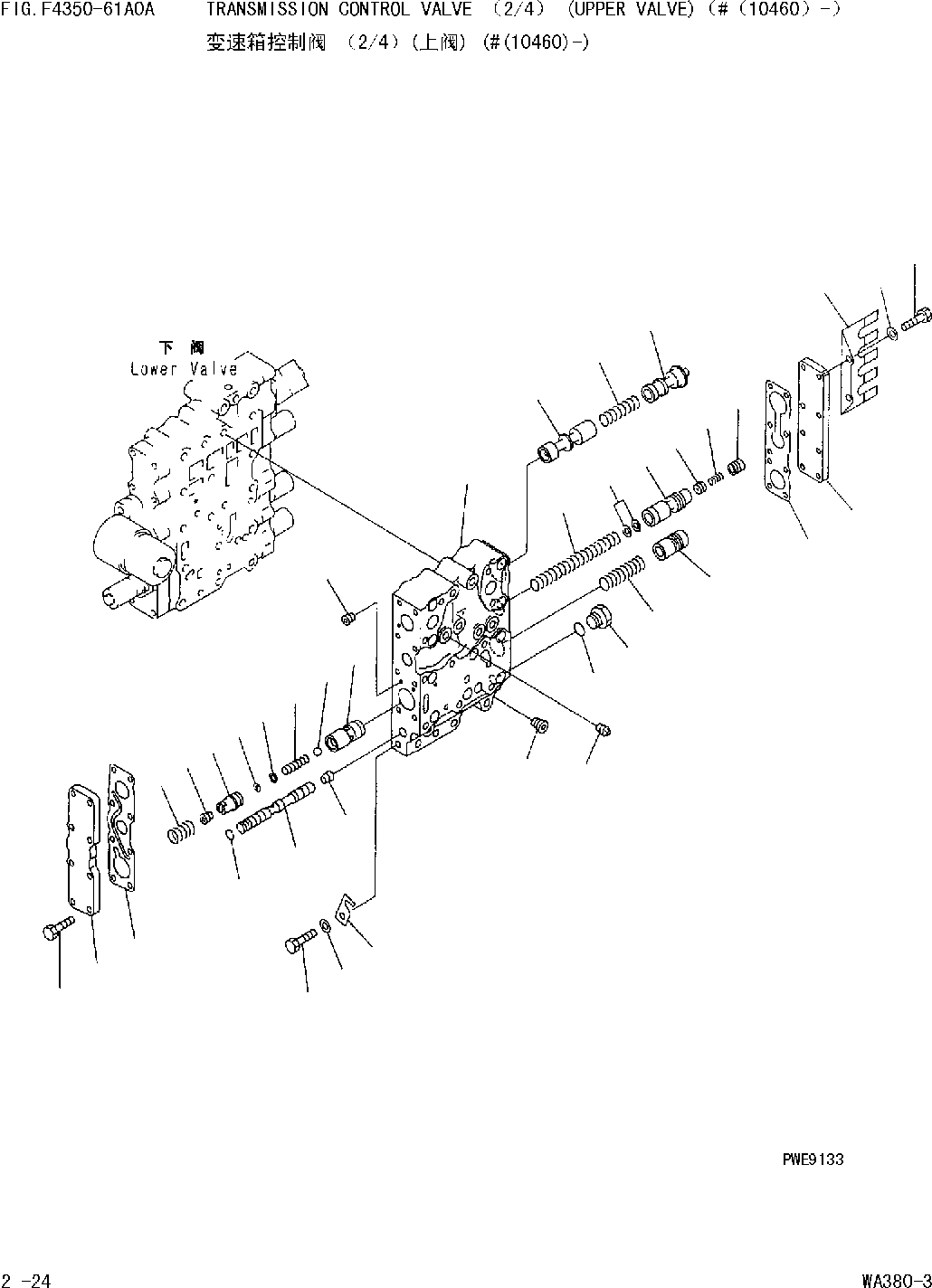

TRANSMISSION CONTROL VALVE(2/4)(UPPER VALVE)(|000103 : |C0012)
Номер на схеме Каталожный номер Название Количество Детали
? SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.
Field_1:
Field_2:
?
Field_1:
Field_2:
? (714-12-10011) TRANSMISSION ASS'Y 1
Field_1:
Field_2: 10460-
? (714-12-10010) TRANSMISSION ASS'Y 1
Field_1:
Field_2: 10119-10459
?
Field_1:
Field_2:
? THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-71A0
Field_1:
Field_2:
?
Field_1:
Field_2:
? 714-12-17003 • VALVE ASS'Y,TRANSMISSION 1
Field_1:
Field_2: 10119-
?
Field_1:
Field_2:
? THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-61A0 TO F4350-63A0
Field_1:
Field_2:
?
Field_1:
Field_2:
? 714-12-17013 • • VALVE ASS'Y,UPPER 1
Field_1:
Field_2: 10119-
? (☆714-07-17111) • • • BODY,UPPER VALVE 1
Field_1:
Field_2: 10119-
? 714-07-15211 • • • VALVE,MAIN 1
Field_1:
Field_2: 10119-
? 714-07-17500 • • • VALVE,ASS'Y 1
Field_1:
Field_2: 10119-
? 714-07-17510 • • • • VALVE,QUICK RETURN 1
Field_1:
Field_2: 10119-
? 714-07-17540 • • • • SCREEN 1
Field_1:
Field_2: 10119-
? 714-07-17521 • • • • PLUG,VALVE 1
Field_1:
Field_2: 10119-
? 714-07-17550 • • • • VALVEЃCTORQUE CONVERTER OUTLET 1
Field_1:
Field_2: 10119-
? 415-15-15470 • • • • PLUG 1
Field_1:
Field_2: 10119-
? 714-01-15440 • • • • SPRING,CHECK 1
Field_1:
Field_2: 10119-
? 04260-01270 • • • • BALL 1
Field_1:
Field_2: 10119-
? 714-07-17360 • • • VALVE,PILOT 1
Field_1:
Field_2: 10119-
? 714-07-15550 • • • VALVEЃCTORQUE CONVERTER OUTLET 1
Field_1:
Field_2: 10119-
? 714-07-15710 • • • SPOOL 1
Field_1:
Field_2: 10119-
? 714-07-15560 • • • VALVE,MANUAL 1
Field_1:
Field_2: 10119-
? 07000-02010 • • • O-RING 1
Field_1:
Field_2: 10119-
? 104-15-25480 • • • VALVE 1
Field_1:
Field_2: 10119-
? 104-15-25490 • • • VALVE 1
Field_1:
Field_2: 10119-
? 113-15-25260 • • • SHIMЃA0.5MM 2
Field_1:
Field_2: 10119-
? 714-07-17570 • • • SPRING 1
Field_1:
Field_2: 10119-
? 714-07-17680 • • • SPRING 1
Field_1:
Field_2: 10119-
? 714-07-15690 • • • SPRING 1
Field_1:
Field_2: 10119-
? 125-15-15290 • • • SPRING 1
Field_1:
Field_2: 10119-
? 714-07-17690 • • • SPRING 1
Field_1:
Field_2: 10119-
? 415-15-15470 • • • PLUG 2
Field_1:
Field_2: 10119-
? 714-16-17410 • • • ORIFICE 1
Field_1:
Field_2: 10119-
? 714-07-17170 • • • COVER,UPPER VALVE 1
Field_1:
Field_2: 10119-
? 714-07-17181 • • • COVER,UPPER VALVE 1
Field_1:
Field_2: 10119-
? 714-07-17930 • • • GASKET 1
Field_1:
Field_2: 10119-
? 714-07-17941 • • • GASKET 1
Field_1:
Field_2: 10119-
? 01010-30825 • • • BOLT 8
Field_1:
Field_2: 10119-
? 01010-30825 • • • BOLT 8
Field_1:
Field_2: 10119-
? 01643-30823 • • • WASHER 8
Field_1:
Field_2: 10119-
? 07040-11812 • • • PLUG 1
Field_1:
Field_2: 10119-
? 07002-01823 • • • O-RING 1
Field_1:
Field_2: 10119-
? 419-15-16670 • • • PLATE,LOCK 1
Field_1:
Field_2: 10119-
? 01643-31032 • • • WASHER 1
Field_1:
Field_2: 10119-
? 01010-81020 • • • BOLT 1
Field_1:
Field_2: 10119-
? 07042-80108 • • • PLUG 4
Field_1:
Field_2: 10119-
? 714-07-15861 • • • BRACKET 1
Field_1:
Field_2: 10119-
