| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (104-15-00082) | TRANSMISSION ASS'Y | 1 | SN: 61056- |
|||
| ? | □104-15-00081 | TRANSMISSION ASS'Y | 1 | SN: 61001-61055 |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2511 TO 2519. | ||||||
| ? | (104-15-32032) | • TRANSMISSION ASS'Y | 1 | SN: 61056- |
|||
| ? | □104-15-32031 | • TRANSMISSION ASS'Y | 1 | SN: 61001-61055 |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2511 TO 2515 AND 2517 TO 2519. | ||||||

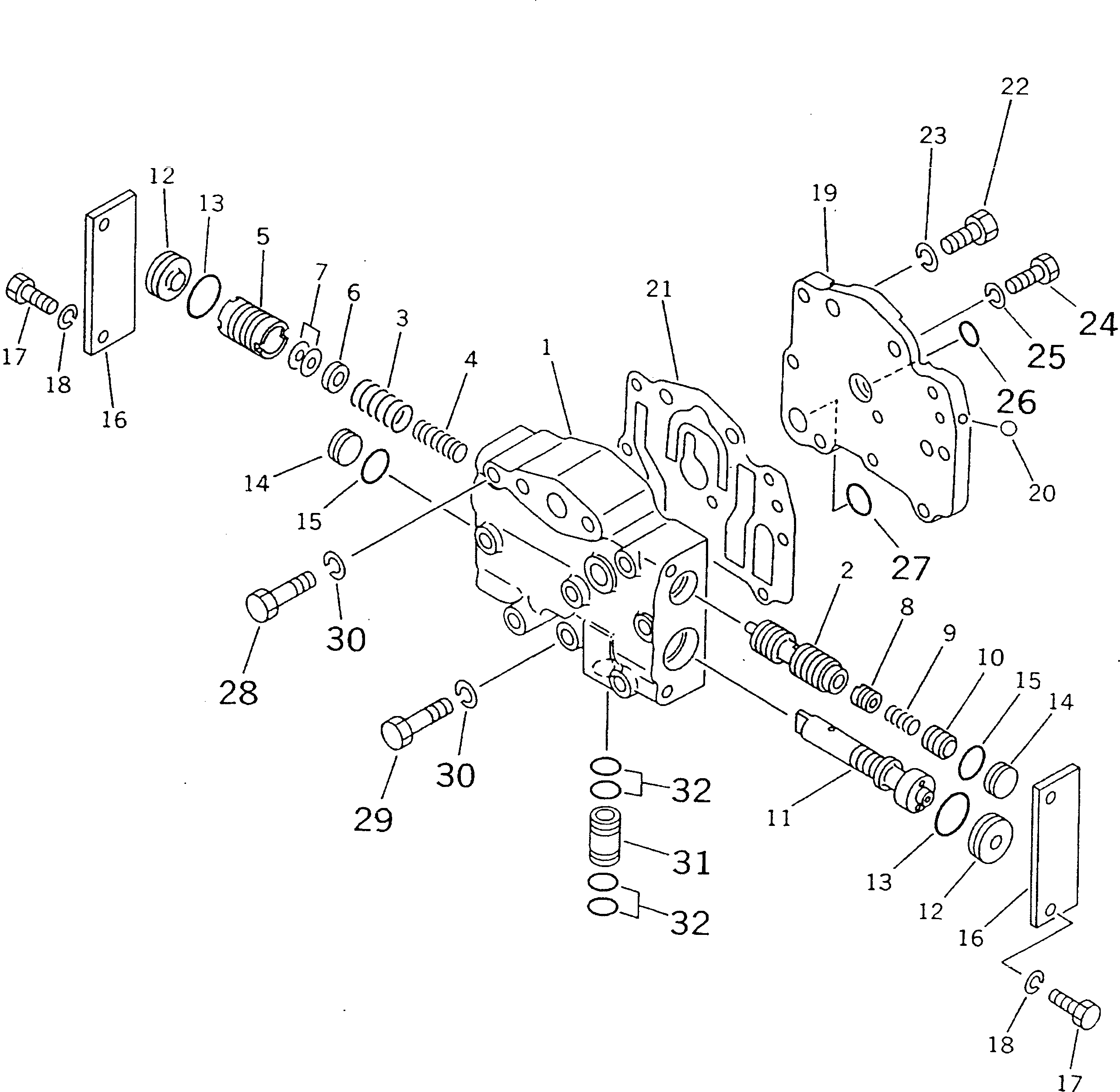

| ? | 103-15-00511 | • • VALVE ASS'Y,MODULATION | 1 | SN: 61056- |
|||
| ? | □103-15-00510 | • • VALVE ASS'Y,MODULATION | 1 | SN: 61001-61055 |
|||
| ? | 104-15-25110 | • • • BODY | 1 | SN: 61001- |
|||
| ? | 104-15-25210 | • • • SPOOL | 1 | SN: 61001- |
|||
| ? | 104-15-25290 | • • • SPRING¤ (L= 62.0) | 1 | SN: 61001- |
|||
| ? | 104-15-25280 | • • • SPRING | 1 | SN: 61001- |
|||
| ? | 104-15-25220 | • • • VALVE | 1 | SN: 61001- |
|||
| ? | 104-15-25260 | • • • SPACER | 1 | SN: 61001- |
|||
| ? | 113-15-25270 | • • • SHIM¤ 0.2MM (K2) | 2 | SN: 61001- |
|||
| ? | 113-15-25260 | • • • SHIM¤ 0.5MM (K2) | 3 | SN: 61001- |
|||
| ? | 104-15-25490 | • • • VALVE | 1 | SN: 61001- |
|||
| ? | 125-15-15290 | • • • SPRING | 1 | SN: 61001- |
|||
| ? | 104-15-25480 | • • • VALVE | 1 | SN: 61001- |
|||
| ? | 104-15-25322 | • • • SPOOL | 1 | SN: 61056- |
|||
| ? | □104-15-25321 | • • • SPOOL | 1 | SN: 61001-61055 |
|||
| ? | 104-15-25330 | • • • STOPPER | 2 | SN: 61001- |
|||
| ? | 07000-73025 | • • • O-RING (K2) | 2 | SN: 61001- |
|||
| ? | 104-15-25340 | • • • STOPPER | 2 | SN: 61001- |
|||
| ? | 07000-72020 | • • • O-RING (K2) | 2 | SN: 61001- |
|||
| ? | 103-15-25350 | • • • PLATE | 2 | SN: 61001- |
|||
| ? | 01010-50820 | • • • BOLT | 4 | SN: 61001- |
|||
| ? | 01602-20825 | • • • WASHER,SPRING | 4 | SN: 61001- |
|||
| ? | 103-15-00531 | • • • SEAT ASS'Y | 1 | SN: 61040- |
|||
| ? | □103-15-00530 | • • • SEAT ASS'Y | 1 | SN: 61001-61039 |
|||
| ? | ☆ | • • • • SEAT | 1 | SN: 61040- |
|||
| ? | ☆ | • • • • SEAT | 1 | SN: 61001-61039 |
|||
| ? | 04260-00635 | • • • • BALL | 1 | SN: 61001- |
|||
| ? | 104-15-25140 | • • • GASKET (K2) | 1 | SN: 61001- |
|||
| ? | 01010-51025 | • • • BOLT | 1 | SN: 61001- |
|||
| ? | 01602-21030 | • • • WASHER,SPRING | 1 | SN: 61001- |
|||
| ? | 01010-50820 | • • • BOLT | 1 | SN: 61001- |
|||
| ? | 01602-20825 | • • • WASHER,SPRING | 1 | SN: 61001- |
|||
| ? | 07000-72014 | • • O-RING (K2) | 3 | SN: 61001- |
|||
| ? | 07000-72018 | • • O-RING (K2) | 1 | SN: 61001- |
|||
| ? | 01010-50860 | • • BOLT | 3 | SN: 61001- |
|||
| ? | 01010-50870 | • • BOLT | 5 | SN: 61001- |
|||
| ? | 01602-20825 | • • WASHER,SPRING | 8 | SN: 61001- |
|||
| ? | 113-15-21770 | • • SLEEVE | 1 | SN: 61001- |
|||
| ? | 07000-72014 | • • O-RING (K2) | 4 | SN: 61001- |
