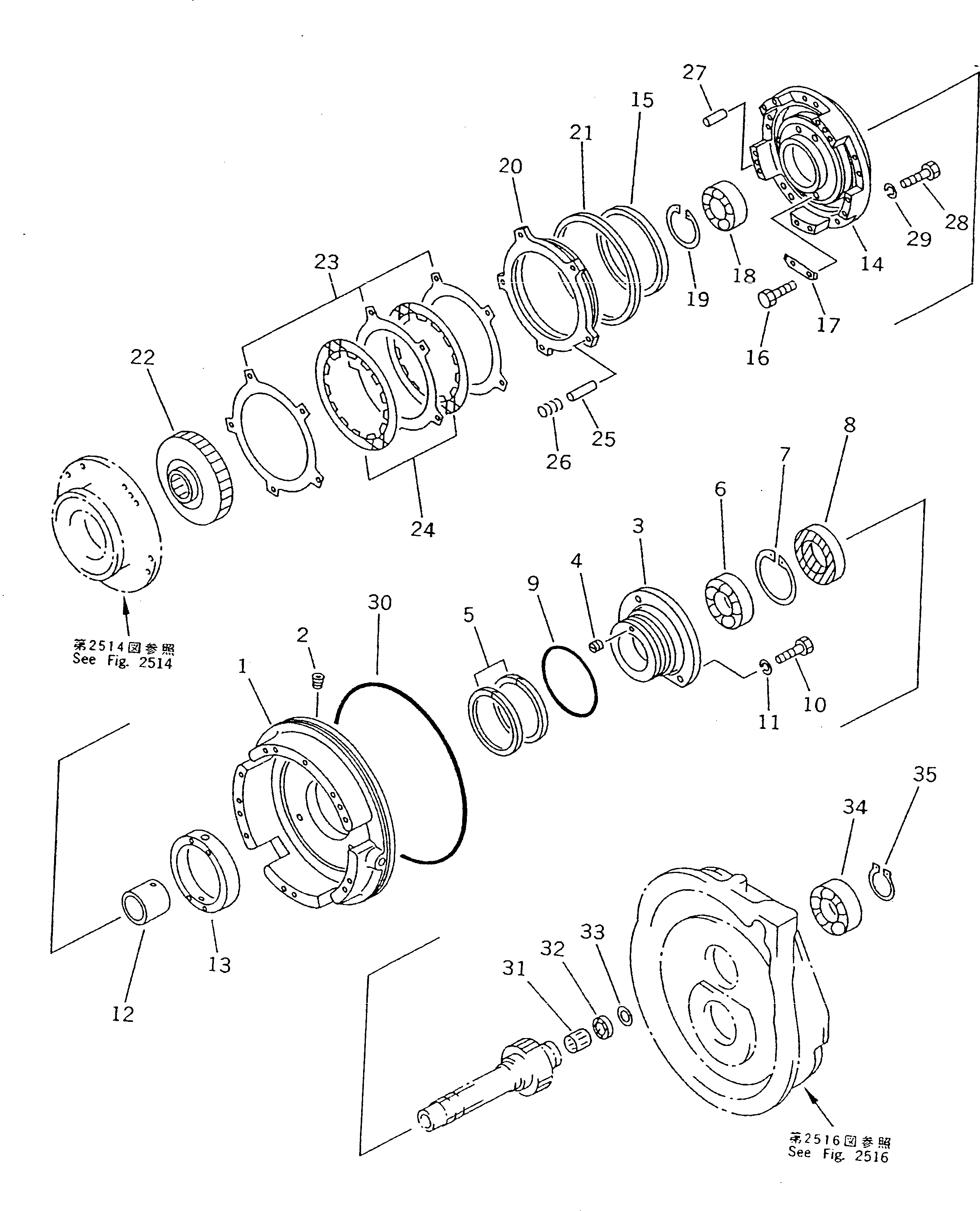

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (104-15-00082) | TRANSMISSION ASS'Y | 1 | SN: 61056- |
|||
| ? | □104-15-00081 | TRANSMISSION ASS'Y | 1 | SN: 61001-61055 |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2511 TO 2519. | ||||||
| ? | (104-15-32032) | • TRANSMISSION ASS'Y | 1 | SN: 61056- |
|||
| ? | □104-15-32031 | • TRANSMISSION ASS'Y | 1 | SN: 61001-61055 |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2511 TO 2515 AND 2517 TO 2519. | ||||||
| ? | 104-15-00540 | • • HOUSING ASS'Y,1ST | 1 | SN: 61001- |
|||
| ? | ☆ | • • • HOUSING | 1 | SN: 61001- |
|||
| ? | 07043-00108 | • • • PLUG | 2 | SN: 61001- |
|||
| ? | 104-15-31210 | • • CASE | 1 | SN: 61001- |
|||
| ? | 175-15-11230 | • • PLUG | 1 | SN: 61001- |
|||
| ? | 07018-20954 | • • RING,SEAL | 2 | SN: 61001- |
|||
| ? | 06000-06009 | • • BEARING | 1 | SN: 61001- |
|||
| ? | 04065-07525 | • • RING,SNAP | 1 | SN: 61001- |
|||
| ? | 07011-10058 | • • SEAL,OIL (K1) | 1 | SN: 61001- |
|||
| ? | 07000-02105 | • • O-RING (K1) | 1 | SN: 61001- |
|||
| ? | 01010-51020 | • • BOLT | 4 | SN: 61001- |
|||
| ? | 01602-21030 | • • WASHER,SPRING | 4 | SN: 61001- |
|||
| ? | 104-15-32160 | • • SPACER | 1 | SN: 61001- |
|||
| ? | 113-15-22390 | • • COLLAR | 1 | SN: 61001- |
|||
| ? | 104-15-32340 | • • HOUSING | 1 | SN: 61001- |
|||
| ? | 568-15-12860 | • • SEAL,RING (K1) | 1 | SN: 61001- |
|||
| ? | 01010-50820 | • • BOLT | 4 | SN: 61001- |
|||
| ? | 113-15-22370 | • • LOCK | 2 | SN: 61001- |
|||
| ? | 06000-06008 | • • BEARING | 1 | SN: 61001- |
|||
| ? | 04065-06825 | • • RING,SNAP | 1 | SN: 61001- |
|||
| ? | 113-15-22780 | • • PISTON,1ST | 1 | SN: 61001- |
|||
| ? | 287-15-19210 | • • RING,SEAL (K1) | 1 | SN: 61001- |
|||
| ? | 104-15-32270 | • • HUB | 1 | SN: 61001- |
|||
| ? | 113-15-22750 | • • PLATE | 3 | SN: 61001- |
|||
| ? | 103-15-32711 | • • DISC | 2 | SN: 61001- |
|||
| ? | 104-15-21280 | • • PIN | 10 | SN: 61001- |
|||
| ? | 104-15-22930 | • • SPRING | 5 | SN: 61001- |
|||
| ? | 04020-01024 | • • PIN,DOWEL | 2 | SN: 61001- |
|||
| ? | 01010-80845 | • • BOLT | 10 | SN: 61001- |
|||
| ? | 01602-20825 | • • WASHER,SPRING | 10 | SN: 61001- |
|||
| ? | 07000-05270 | • • O-RING (K1) | 1 | SN: 61001- |
|||
| ? | 113-15-29440 | • • BEARING,NEEDLE | 1 | SN: 61001- |
|||
| ? | 113-15-39120 | • • SEAL,DUST (K1) | 1 | SN: 61001- |
|||
| ? | 113-15-29520 | • • RING,SNAP | 1 | SN: 61001- |
|||
| ? | 06042-00208 | • • BEARING | 1 | SN: 61001- |
|||
| ? | 103-15-29510 | • • RING,SNAP | 1 | SN: 61001- |
