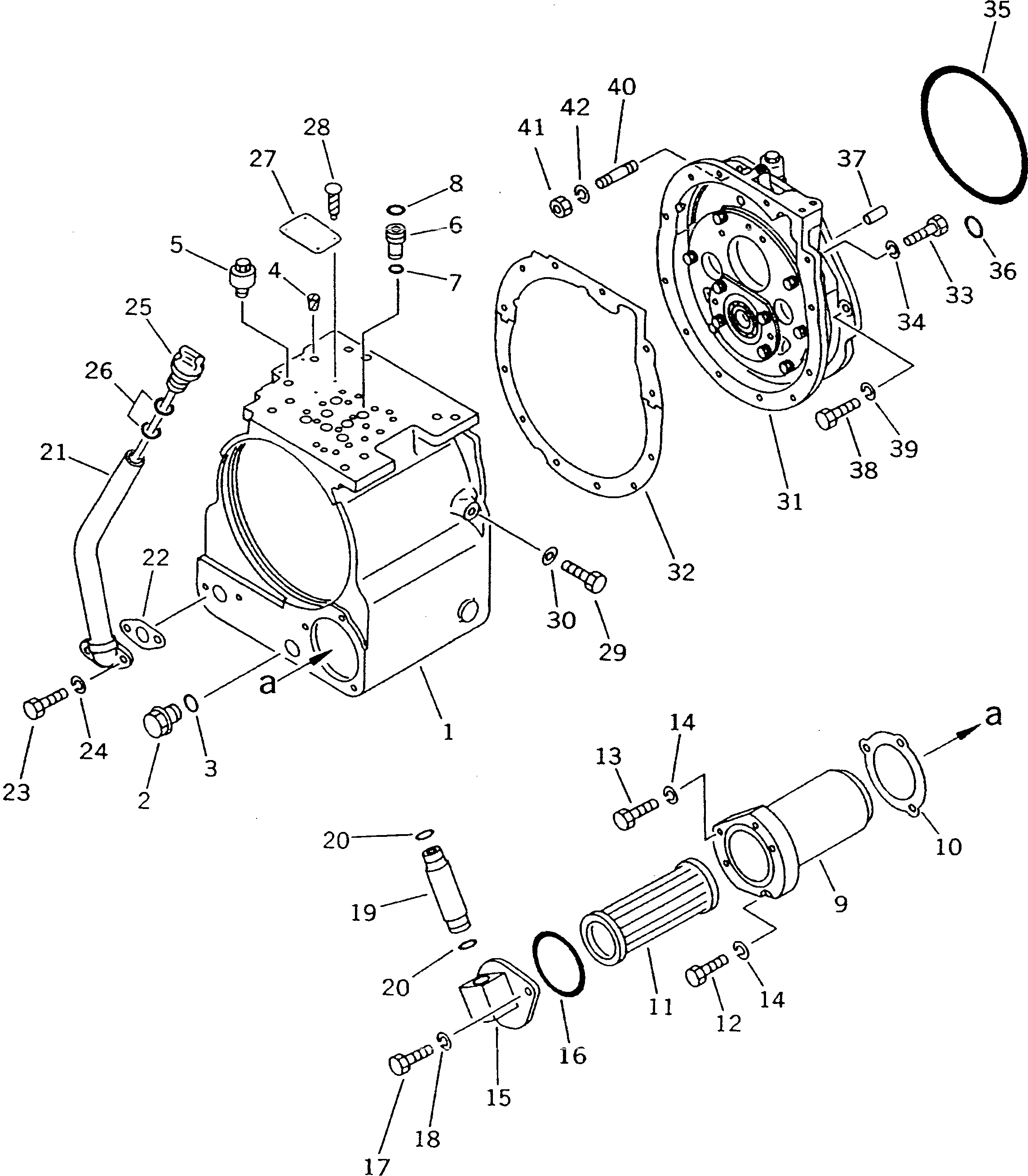

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 104-15-00082 | TRANSMISSION ASS'Y | 1 | SN: 61056- |
|||
| ? | □104-15-00081 | TRANSMISSION ASS'Y | 1 | SN: 61001-61055 |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2511 TO 2519. | ||||||
| ? | 104-15-32032 | • TRANSMISSION ASS'Y | 1 | SN: 61056- |
|||
| ? | □104-15-32031 | • TRANSMISSION ASS'Y | 1 | SN: 61001-61055 |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2511 TO 2515 AND 2517 TO 2519. | ||||||
| ? | 104-15-41110 | • • CASE | 1 | SN: 61001- |
|||
| ? | 07044-12412 | • • PLUG | 1 | SN: 61001- |
|||
| ? | 07002-02434 | • • O-RING (K1) | 1 | SN: 61001- |
|||
| ? | 07049-01215 | • • PLUG | 2 | SN: 61001- |
|||
| ? | 07030-00252 | • • BREATHER | 1 | SN: 61001- |
|||
| ? | 113-15-21310 | • • SLEEVE | 6 | SN: 61001- |
|||
| ? | 07000-72010 | • • O-RING (K1) | 6 | SN: 61001- |
|||
| ? | 07000-72012 | • • O-RING (K1) | 6 | SN: 61001- |
|||
| ? | 104-15-21710 | • • CASE | 1 | SN: 61001- |
|||
| ? | 113-15-21721 | • • GASKET (K1) | 1 | SN: 61076- |
|||
| ? | □113-15-21720 | • • GASKET (K1) | 1 | SN: 61001-61075 |
|||
| ? | 113-15-21730 | • • SCREEN | 1 | SN: 61001- |
|||
| ? | 01010-50835 | • • BOLT | 1 | SN: 61001- |
|||
| ? | 01010-50845 | • • BOLT | 2 | SN: 61001- |
|||
| ? | 01602-20825 | • • WASHER,SPRING | 3 | SN: 61001- |
|||
| ? | 104-15-21740 | • • COVER | 1 | SN: 61001- |
|||
| ? | 07000-02095 | • • O-RING (K1) | 1 | SN: 61001- |
|||
| ? | 01010-50820 | • • BOLT | 2 | SN: 61001- |
|||
| ? | 01602-20825 | • • WASHER,SPRING | 2 | SN: 61001- |
|||
| ? | 113-15-21760 | • • SLEEVE | 1 | SN: 61001- |
|||
| ? | 07000-73028 | • • O-RING (K1) | 2 | SN: 61001- |
|||
| ? | 104-15-38110 | • • FILLER | 1 | SN: 61001- |
|||
| ? | 103-15-28131 | • • GASKET (K1) | 1 | SN: 61076- |
|||
| ? | □103-15-28130 | • • GASKET (K1) | 1 | SN: 61001-61075 |
|||
| ? | 01010-51030 | • • BOLT | 2 | SN: 61001- |
|||
| ? | 01602-21030 | • • WASHER,SPRING | 2 | SN: 61001- |
|||
| ? | 104-15-28120 | • • GAUGE | 1 | SN: 61001- |
|||
| ? | 07000-03022 | • • O-RING (K1) | 2 | SN: 61001- |
|||
| ? | 09608-05080 | • • PLATE¤ NAME,(LIMITED SUPPLY) | 1 | SN: 61001- |
|||
| ? | 04418-13060 | • • SCREW | 4 | SN: 61001- |
|||
| ? | 01010-51465 | • • BOLT | 2 | SN: 61001- |
|||
| ? | 01640-21426 | • • WASHER | 2 | SN: 61001- |
|||
| ? | (104-15-00420) | • TRANSFER ASS'Y | 1 | SN: 61001- |
|||
| ? | 113-15-21121 | • GASKET (K1) | 1 | SN: 61076- |
|||
| ? | □113-15-21120 | • GASKET (K1) | 1 | SN: 61001-61075 |
|||
| ? | 01010-51030 | • BOLT | 12 | SN: 61001- |
|||
| ? | 01602-21030 | • WASHER,SPRING | 12 | SN: 61001- |
|||
| ? | 07000-05220 | O-RING (K1) | 1 | SN: 61001- |
|||
| ? | 07000-73025 | O-RING (K1) | 1 | SN: 61001- |
|||
| ? | 04020-01024 | PIN,DOWEL | 1 | SN: 61001- |
|||
| ? | 01010-51230 | BOLT | 5 | SN: 61001- |
|||
| ? | 01602-21236 | WASHER,SPRING | 5 | SN: 61001- |
|||
| ? | 01124-51230 | STUD | 2 | SN: 61001- |
|||
| ? | 01580-11210 | NUT | 2 | SN: 61001- |
|||
| ? | 01602-21236 | WASHER,SPRING | 2 | SN: 61001- |
