| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (103-15-00602) | TRANSMISSION ASS'Y | 1 | SN: 61001- |
|||
| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2501 TO 2508. | ||||||
| ? | (103-15-00612) | • TRANSMISSION ASS'Y | 1 | SN: 61001- |
|||
| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2501 TO 2504 AND 2506 TO 2508. | ||||||

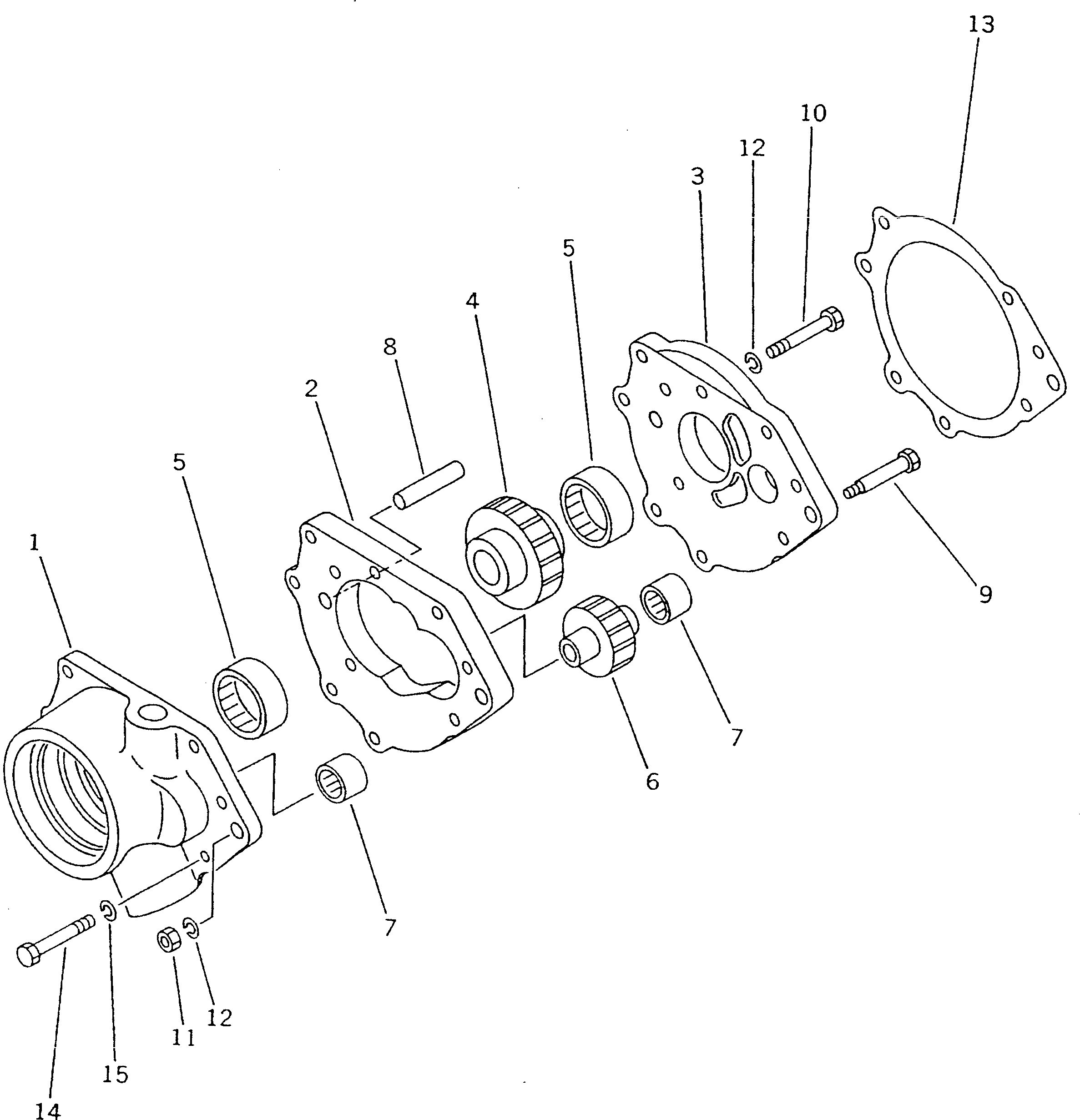

| ? | 103-15-00730 | • • PUMP ASS'Y | 1 | SN: 61001- |
|||
| ? | 113-15-24810 | • • • HOUSING | 1 | SN: 61001- |
|||
| ? | 103-15-34820 | • • • CASE | 1 | SN: 61001- |
|||
| ? | 103-15-34830 | • • • BRACKET | 1 | SN: 61001- |
|||
| ? | 103-15-34840 | • • • GEAR | 1 | SN: 61001- |
|||
| ? | 113-15-29420 | • • • BEARING,NEEDLE | 2 | SN: 61001- |
|||
| ? | 363-15-14880 | • • • GEAR | 1 | SN: 61001- |
|||
| ? | 113-15-29460 | • • • BEARING,NEEDLE | 2 | SN: 61001- |
|||
| ? | 113-15-24880 | • • • PIN,DOWEL | 1 | SN: 61001- |
|||
| ? | 113-15-24870 | • • • BOLT | 1 | SN: 61001- |
|||
| ? | 01010-50845 | • • • BOLT | 3 | SN: 61001- |
|||
| ? | 01580-10806 | • • • NUT | 1 | SN: 61001- |
|||
| ? | 01602-20825 | • • • WASHER,SPRING | 4 | SN: 61001- |
|||
| ? | 113-15-24860 | • • GASKET (KIT) | 1 | SN: 61001- |
|||
| ? | 01010-50855 | • • BOLT | 7 | SN: 61001- |
|||
| ? | 01602-20825 | • • WASHER,SPRING | 7 | SN: 61001- |
