| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (104-15-00080) | TRANSMISSION ASS'Y | 1 | SN: 60334- |
|||
| ? | (□104-15-00040) | TRANSMISSION ASS'Y | 1 | SN: 60001-60333 |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2511 TO 2517 AND 2553 ? 2563. | ||||||

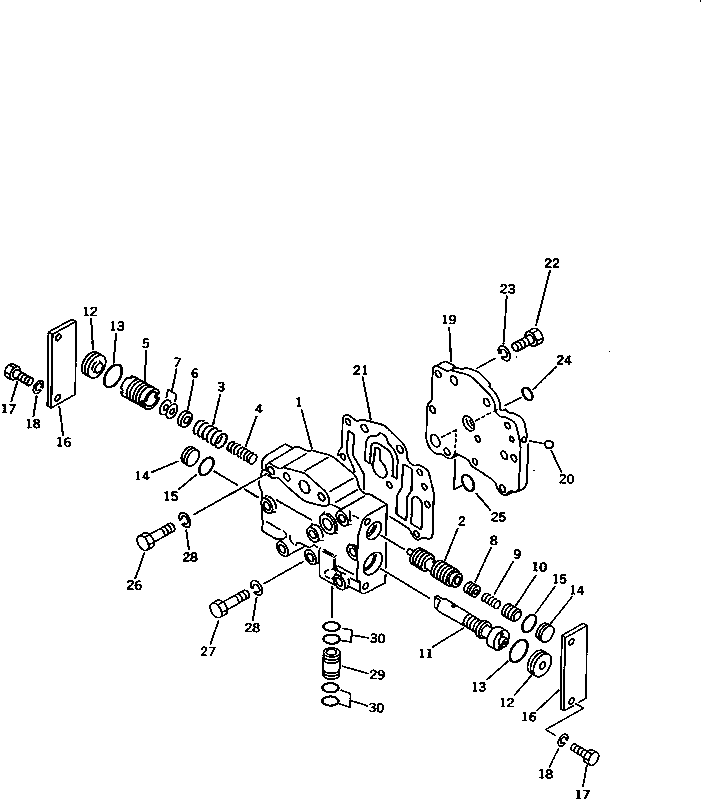

| ? | 103-15-00510 | • VALVE ASS'Y,MODULATION | 1 | SN: 60001- |
|||
| ? | 104-15-25110 | • • BODY | 1 | SN: 60001- |
|||
| ? | 104-15-25210 | • • SPOOL | 1 | SN: 60001- |
|||
| ? | 104-15-25290 | • • SPRING ? (L= 62.0) | 1 | SN: 60001- |
|||
| ? | 104-15-25280 | • • SPRING | 1 | SN: 60001- |
|||
| ? | 104-15-25220 | • • VALVE | 1 | SN: 60001- |
|||
| ? | 104-15-25260 | • • SPACER | 1 | SN: 60001- |
|||
| ? | 113-15-25270 | • • SHIM ? 0.2MM | 2 | SN: 60001- |
|||
| ? | 113-15-25260 | • • SHIM ? 0.5MM | 3 | SN: 60001- |
|||
| ? | 104-15-25490 | • • VALVE | 1 | SN: 60001- |
|||
| ? | 125-15-15290 | • • SPRING | 1 | SN: 60001- |
|||
| ? | 104-15-25480 | • • VALVE | 1 | SN: 60001- |
|||
| ? | 104-15-25321 | • • SPOOL | 1 | SN: 60001- |
|||
| ? | 104-15-25330 | • • STOPPER | 2 | SN: 60001- |
|||
| ? | 07000-73025 | • • O-RING | 2 | SN: 60001- |
|||
| ? | 104-15-25340 | • • STOPPER | 2 | SN: 60001- |
|||
| ? | 07000-72020 | • • O-RING | 2 | SN: 60001- |
|||
| ? | 103-15-25350 | • • PLATE | 2 | SN: 60001- |
|||
| ? | 01010-50820 | • • BOLT | 4 | SN: 60001- |
|||
| ? | 01602-20825 | • • WASHER,SPRING | 4 | SN: 60001- |
|||
| ? | 103-15-00530 | • • SEAT ASS'Y | 1 | SN: 60001- |
|||
| ? | ☆ | • • • SEAT | 1 | SN: 60001- |
|||
| ? | 04260-00635 | • • • BALL | 1 | SN: 60001- |
|||
| ? | 104-15-25140 | • • GASKET | 1 | SN: 60001- |
|||
| ? | 01010-51025 | • • BOLT | 2 | SN: 60001- |
|||
| ? | 01602-21030 | • • WASHER,SPRING | 2 | SN: 60001- |
|||
| ? | 07000-72014 | • O-RING | 3 | SN: 60001- |
|||
| ? | 07000-72018 | • O-RING | 1 | SN: 60001- |
|||
| ? | 01010-50860 | • BOLT | 3 | SN: 60001- |
|||
| ? | 01010-50870 | • BOLT | 5 | SN: 60001- |
|||
| ? | 01602-20825 | • WASHER,SPRING | 8 | SN: 60001- |
|||
| ? | 113-15-21770 | • SLEEVE | 1 | SN: 60001- |
|||
| ? | 07000-72014 | • O-RING | 4 | SN: 60001- |
