| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

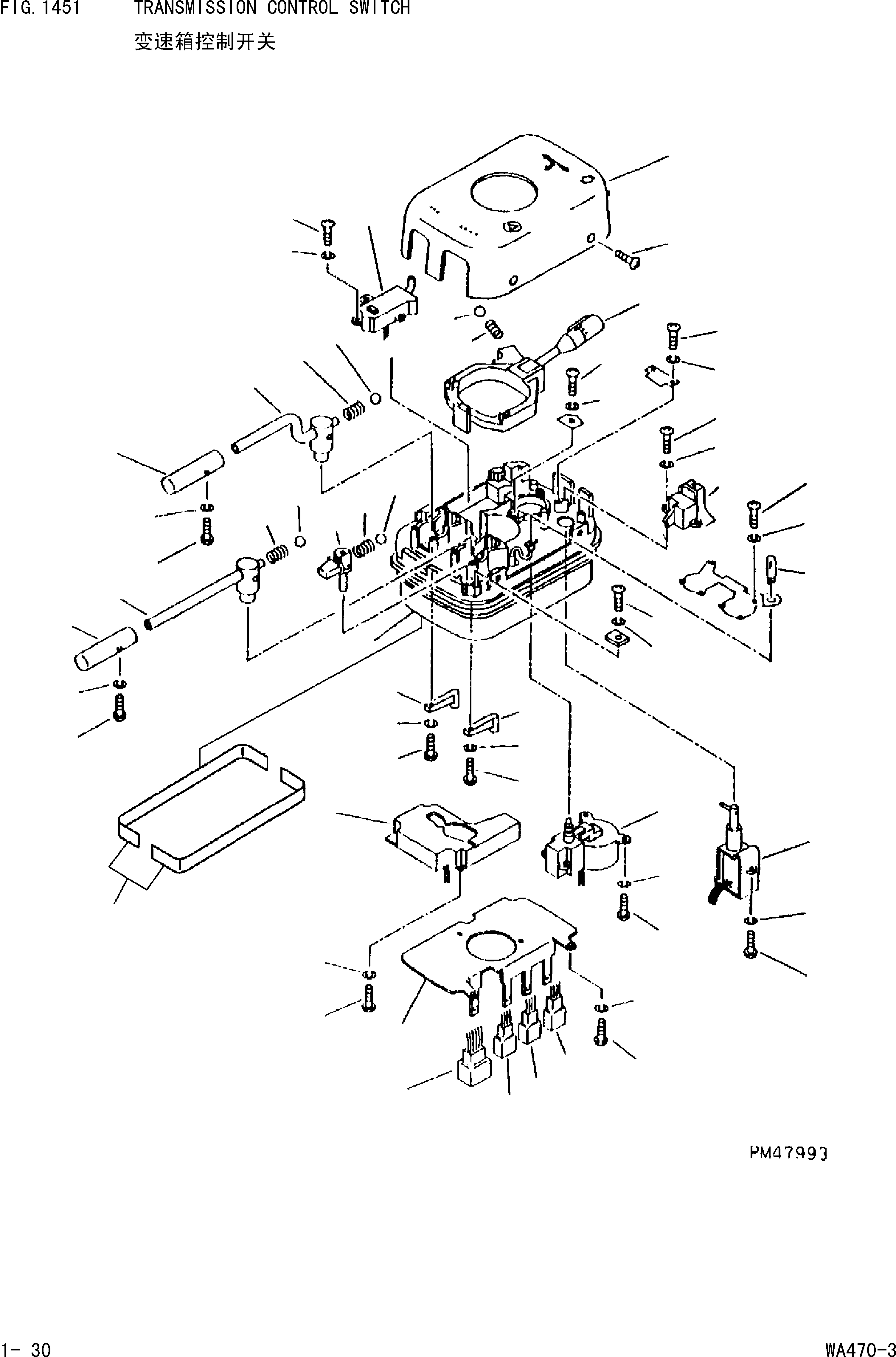

| ? | 421-43-26123 | SWITCH ASS'Y,TRANSMISSION CONTROL | 1 | Field_1: 25001- Field_2: |
|||
| ? | 417-43-26212 | • SWITCH TRANSMISSION | 1 | Field_1: 25001- Field_2: |
|||
| ? | 01220-40412 | • SCREW | 4 | Field_1: 25001- Field_2: |
|||
| ? | 01601-20410 | • WASHER SPRING | 4 | Field_1: 25001- Field_2: |
|||
| ? | 417-43-26220 | • SWITCH | 1 | Field_1: 25001- Field_2: |
|||
| ? | 01220-40412 | • SCREW | 4 | Field_1: 25001- Field_2: |
|||
| ? | 01601-20410 | • WASHER SPRING | 4 | Field_1: 25001- Field_2: |
|||
| ? | 421-43-26470 | • SWITCH,PARKING | 1 | Field_1: 25001- Field_2: |
|||
| ? | 01220-40412 | • SCREW | 2 | Field_1: 25001- Field_2: |
|||
| ? | 01601-20410 | • WASHER SPRING | 2 | Field_1: 25001- Field_2: |
|||
| ? | 417-43-26320 | • ARM MAGNET | 2 | Field_1: 25001- Field_2: |
|||
| ? | 01220-40312 | • SCREW | 2 | Field_1: 25001- Field_2: |
|||
| ? | 01601-20307 | • WASHER SPRING | 2 | Field_1: 25001- Field_2: |
|||
| ? | 417-43-26330 | • LEVER ASS'Y,LAMP AND TURN SIGNAL | 1 | Field_1: 25001- Field_2: |
|||
| ? | 417-43-26350 | • BALL | 1 | Field_1: 25001- Field_2: |
|||
| ? | 417-43-26340 | • SPRING | 1 | Field_1: 25001- Field_2: |
|||
| ? | 01220-40408 | • SCREW | 3 | Field_1: 25001- Field_2: |
|||
| ? | 01601-20410 | • WASHER SPRING | 3 | Field_1: 25001- Field_2: |
|||
| ? | 421-43-26480 | • KNOB,PARKING | 1 | Field_1: 25001- Field_2: |
|||
| ? | 01220-40412 | • SCREW | 2 | Field_1: 25001- Field_2: |
|||
| ? | 01601-20410 | • WASHER SPRING | 2 | Field_1: 25001- Field_2: |
|||
| ? | 417-43-26230 | • SWITCH,HAZARD | 1 | Field_1: 25001- Field_2: |
|||
| ? | 01220-40412 | • SCREW | 3 | Field_1: 25001- Field_2: |
|||
| ? | 01601-20410 | • WASHER SPRING | 3 | Field_1: 25001- Field_2: |
|||
| ? | 7815-11-1010 | • BULB.1.4W | 1 | Field_1: 25001- Field_2: |
|||
| ? | 01220-40408 | • SCREW | 6 | Field_1: 25001- Field_2: |
|||
| ? | 01601-20410 | • WASHER SPRING | 6 | Field_1: 25001- Field_2: |
|||
| ? | 417-43-26360 | • KNOB ASS'Y LOCK | 1 | Field_1: 25001- Field_2: |
|||
| ? | 417-43-26380 | • BALL | 3 | Field_1: 25001- Field_2: |
|||
| ? | 417-43-26370 | • SPRING | 3 | Field_1: 25001- Field_2: |
|||
| ? | 01220-40408 | • SCREW | 1 | Field_1: 25001- Field_2: |
|||
| ? | 01601-20410 | • WASHER SPRING | 1 | Field_1: 25001- Field_2: |
|||
| ? | 417-43-26241 | • LEVER ASS'Y,F-R | 1 | Field_1: 25001- Field_2: |
|||
| ? | 417-43-26251 | • • LEVER,F-R | 1 | Field_1: 25001- Field_2: |
|||
| ? | 417-43-26280 | • LEVER,SPEED | 1 | Field_1: 25001- Field_2: |
|||
| ? | 417-43-26310 | • • BALL | 1 | Field_1: 25001- Field_2: |
|||
| ? | 417-43-26290 | • • SPRING | 1 | Field_1: 25001- Field_2: |
|||
| ? | 417-43-26260 | • LEVER ASS'Y TRANSMISSION | 1 | Field_1: 25001- Field_2: |
|||
| ? | 417-43-26270 | • LEVER SPEED | 1 | Field_1: 25001- Field_2: |
|||
| ? | 417-43-26280 | • • GRIP | 1 | Field_1: 25001- Field_2: |
|||
| ? | 417-43-26310 | • • BALL | 1 | Field_1: 25001- Field_2: |
|||
| ? | 417-43-26290 | • • SPRING | 1 | Field_1: 25001- Field_2: |
|||
| ? | 01220-40308 | • SCREW | 2 | Field_1: 25001- Field_2: |
|||
| ? | 01601-20307 | • WASHER SPRING | 2 | Field_1: 25001- Field_2: |
|||
| ? | 421-43-26490 | • CASE | 1 | Field_1: 25001- Field_2: |
|||
| ? | 417-43-26410 | • SCREW | 4 | Field_1: 25001- Field_2: |
|||
| ? | 01220-40308 | • SCREW | 4 | Field_1: 25001- Field_2: |
|||
| ? | 01601-20307 | • WASHER SPRING | 4 | Field_1: 25001- Field_2: |
|||
| ? | 426-54-22910 | SHEET | 2 | Field_1: 25001- Field_2: |
