| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

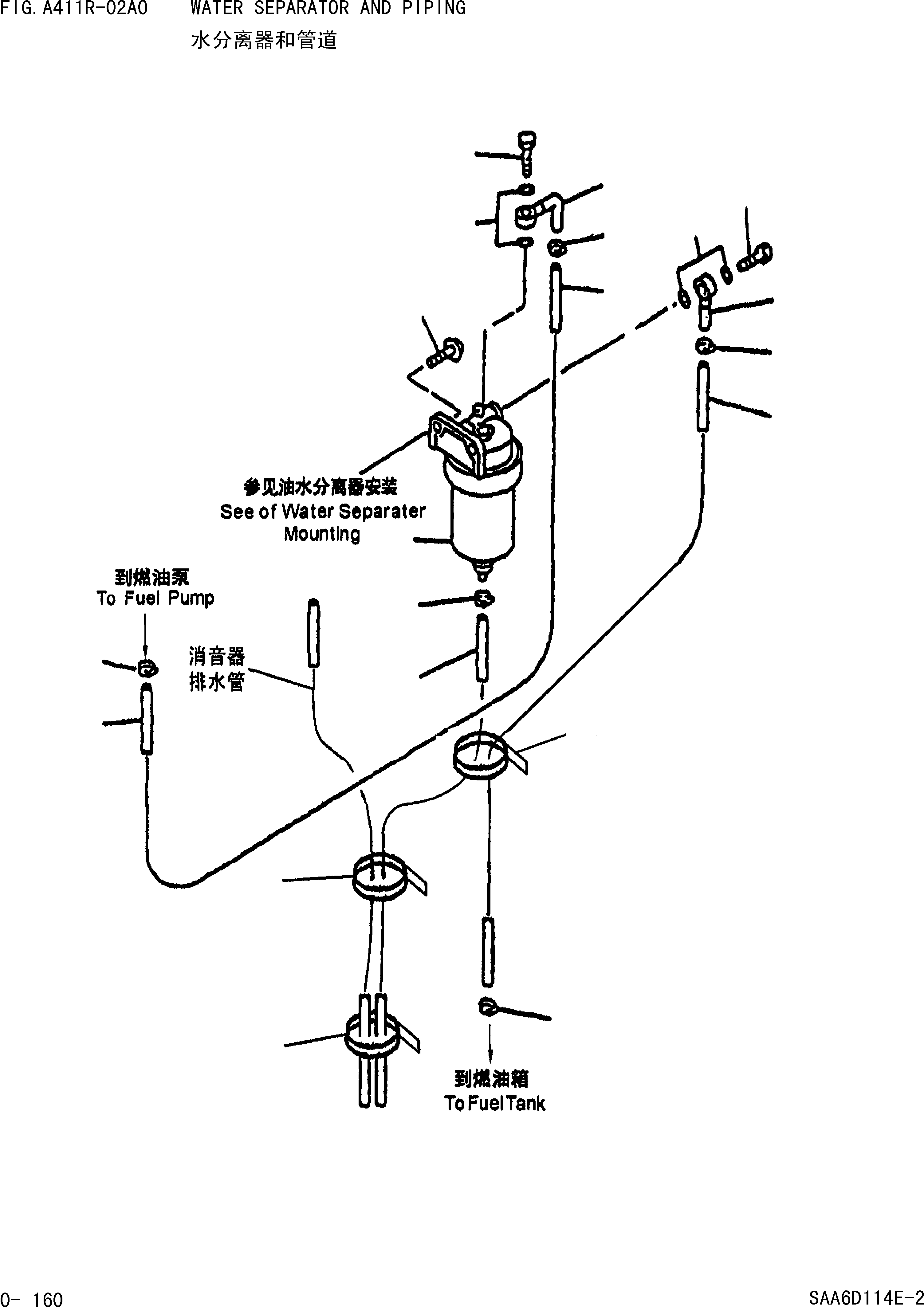

| ? | 22U-04-21131 | WATER SEPARATOR | 1 | Field_1: 21677326- Field_2: |
|||
| ? | 01435-01030 | BOLT | 2 | Field_1: 21677326- Field_2: |
|||
| ? | 07288-01008 | HOSE | 1 | Field_1: 21677326- Field_2: |
|||
| ? | 11Y-09-11140 | CLAMP | 2 | Field_1: 21677326- Field_2: |
|||
| ? | 07270-60612 | HOSE | 1 | Field_1: 21677326- Field_2: |
|||
| ? | 07285-00080 | CLAMP | 1 | Field_1: 21677326- Field_2: |
|||
| ? | 205-04-62150 | JOINT | 1 | Field_1: 21677326- Field_2: |
|||
| ? | 07206-31014 | JOINT | 2 | Field_1: 21677326- Field_2: |
|||
| ? | 07005-01412 | GASKET | 4 | Field_1: 21677326- Field_2: |
|||
| ? | 203-04-56150 | JOINT | 1 | Field_1: 21677326- Field_2: |
|||
| ? | 07288-01009 | HOSE | 1 | Field_1: 21677326- Field_2: |
|||
| ? | 11Y-09-11140 | CLAMP | 2 | Field_1: 21677326- Field_2: |
|||
| ? | 08034-20519 | BAND | 3 | Field_1: 21677326- Field_2: |
