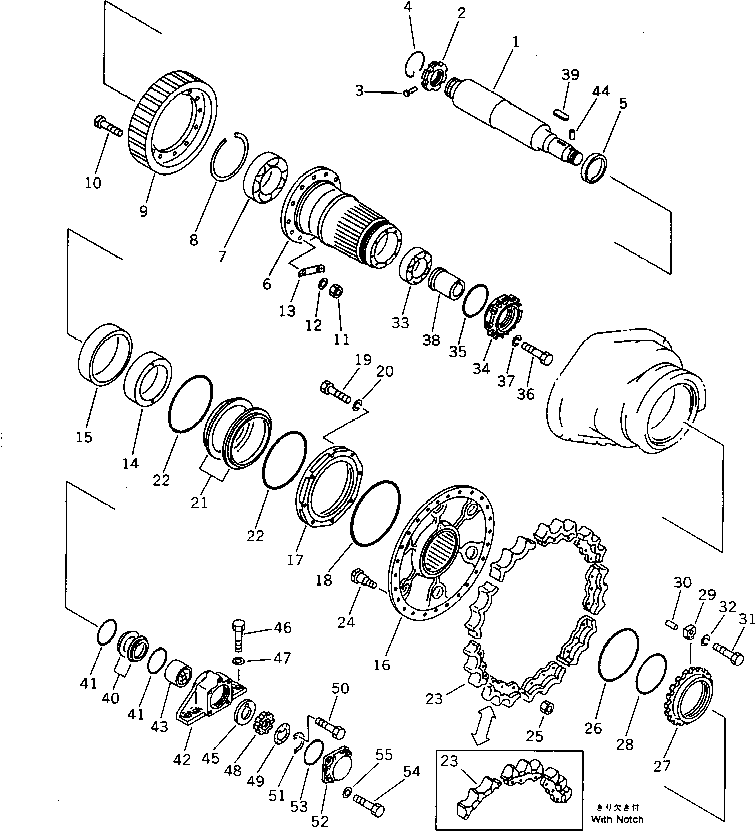

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 14G-27-12171 | SHAFT,SPROCKET | 2 | SN: 1001- |
|||
| ? | 141-27-32240 | NUT | 2 | SN: 1001- |
|||
| ? | 130-27-12131 | PIN | 2 | SN: 1001- |
|||
| ? | 170-27-12480 | RING,SNAP | 2 | SN: 1001- |
|||
| ? | 141-27-31230 | COLLAR | 2 | SN: 1001- |
|||
| ? | 14G-27-12140 | HUB | 2 | SN: 1001- |
|||
| ? | 06045-02228 | BEARING,ROLLER | 2 | SN: 1001- |
|||
| ? | 04071-00250 | RING,SNAP | 2 | SN: 1001- |
|||
| ? | 145-27-41510 | GEAR ? 42 TEETH | 2 | SN: 1001- |
|||
| ? | 01084-02060 | BOLT | 24 | SN: 1001- |
|||
| ? | 141-27-31252 | NUT | 24 | SN: 1001- |
|||
| ? | 141-27-31280 | WASHER | 24 | SN: 1001- |
|||
| ? | 141-27-31270 | LOCK | 12 | SN: 1001- |
|||
| ? | 14G-27-12150 | BUSHING | 2 | SN: 1001- |
|||
| ? | 14G-27-12160 | BUSHING | 2 | SN: 1001- |
|||
| ? | 141-27-32115 | HUB | 2 | SN: 1001- |
|||
| ? | 14G-27-11230 | GUARD | 2 | SN: 1001- |
|||
| ? | 07000-05345 | O-RING | 2 | SN: 1001- |
|||
| ? | 145-27-42230 | BOLT | 16 | SN: 1001- |
|||
| ? | 01602-21030 | WASHER,SPRING | 16 | SN: 1001- |
|||
| ? | 150-27-00027 | FLOATING SEAL ASS'Y | 2 | SN: 1001- |
|||
| ? | 150-27-00262 | • SEAL RING ASS'Y | 1 | SN: 1001- |
|||
| ? | ☆ | • • RING,SEAL | 2 | SN: 1001- |
|||
| ? | 150-27-00270 | • O-RING ASS'Y | 1 | SN: 1001- |
|||
| ? | ☆ | • • O-RING | 2 | SN: 1001- |
|||
| ? | 141-27-32410 | TEETH | 18 | SN: 1001- |
|||
| ? | 144-27-51150 | TEETH,(WITH NOTCH) | 18 | SN: 1001- |
|||
| ? | 154-27-12320 | BOLT | 54 | SN: 1001- |
|||
| ? | 01803-02228 | NUT | 54 | SN: 1001- |
|||
| ? | 07000-05270 | O-RING | 2 | SN: 1001- |
|||
| ? | 141-27-32330 | NUT | 2 | SN: 1001- |
|||
| ? | 07000-05230 | O-RING | 2 | SN: 1001- |
|||
| ? | 141-27-32220 | PLATE,LOCK | 2 | SN: 1001- |
|||
| ? | 04020-01228 | PIN,DOWEL | 2 | SN: 1001- |
|||
| ? | 01252-41635 | BOLT | 2 | SN: 1001- |
|||
| ? | 01602-21648 | WASHER,SPRING | 2 | SN: 1001- |
|||
| ? | 06030-23220 | BEARING,ROLLER | 2 | SN: 1001- |
|||
| ? | 145-27-32430 | RETAINER | 2 | SN: 1001- |
|||
| ? | 07000-05170 | O-RING | 2 | SN: 1001- |
|||
| ? | 01010-51230 | BOLT | 16 | SN: 1001- |
|||
| ? | 01602-21236 | WASHER,SPRING | 16 | SN: 1001- |
|||
| ? | 144-27-12640 | COLLAR | 2 | SN: 1001- |
|||
| ? | 04000-01265 | KEY | 2 | SN: 1001- |
|||
| ? | 150-27-00017 | FLOATING SEAL ASS'Y | 2 | SN: 1001- |
|||
| ? | 150-27-00182 | • SEAL RING ASS'Y | 1 | SN: 1001- |
|||
| ? | ☆ | • • RING,SEAL | 2 | SN: 1001- |
|||
| ? | 150-27-00190 | • O-RING ASS'Y | 1 | SN: 1001- |
|||
| ? | ☆ | • • O-RING | 2 | SN: 1001- |
|||
| ? | 144-27-12161 | BEARING | 2 | SN: 1001- |
|||
| ? | 141-27-32190 | BUSHING | 2 | SN: 1001- |
|||
| ? | 175-27-32510 | PIN,DOWEL | 2 | SN: 1001- |
|||
| ? | 144-27-12451 | WASHER | 2 | SN: 1001- |
|||
| ? | 01010-52465 | BOLT | 8 | SN: 1001- |
|||
| ? | 01643-32460 | WASHER | 8 | SN: 1001- |
|||
| ? | 154-27-12412 | NUT | 2 | SN: 1001- |
|||
| ? | 154-27-15240 | PLATE,LOCK | 2 | SN: 1001- |
|||
| ? | 01010-51020 | BOLT | 4 | SN: 1001- |
|||
| ? | 154-27-15250 | PLATE,LOCK | 2 | SN: 1001- |
|||
| ? | 144-27-12461 | CAP | 2 | SN: 1001- |
|||
| ? | 07000-02140 | O-RING | 2 | SN: 1001- |
|||
| ? | 01010-51845 | BOLT | 8 | SN: 1001- |
|||
| ? | 01643-31845 | WASHER | 8 | SN: 1001- |
