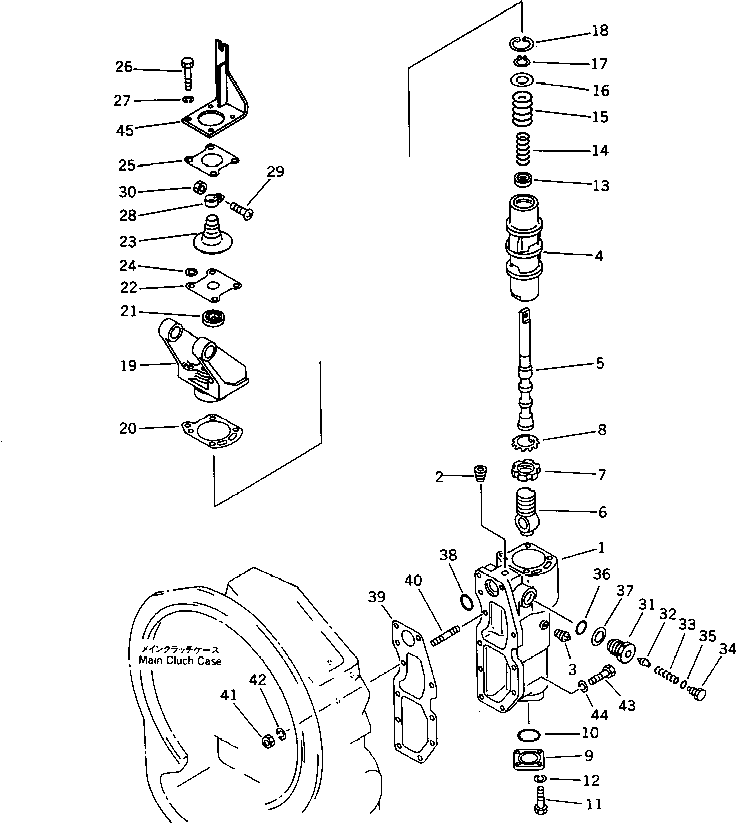

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 141-10-34112 | HOUSING | 1 | SN: 1001- |
|||
| ? | 07043-00415 | PLUG | 1 | SN: 1001- |
|||
| ? | 07042-20108 | PLUG | 1 | SN: 1001- |
|||
| ? | 144-10-11340 | PISTON | 1 | SN: 1001- |
|||
| ? | 144-10-11330 | VALVE | 1 | SN: 1001- |
|||
| ? | 170-10-15190 | COUPLING | 1 | SN: 1001- |
|||
| ? | 01530-03912 | NUT | 1 | SN: 1001- |
|||
| ? | 170-10-15211 | WASHER,LOCK | 1 | SN: 1001- |
|||
| ? | 141-10-34320 | COVER | 1 | SN: 1001- |
|||
| ? | 07000-03040 | O-RING | 1 | SN: 1001- |
|||
| ? | 01010-50820 | BOLT | 4 | SN: 1001- |
|||
| ? | 01602-20825 | WASHER,SPRING | 4 | SN: 1001- |
|||
| ? | 170-10-15281 | SPACER | 1 | SN: 1001- |
|||
| ? | 144-10-11350 | SPRING | 1 | SN: 1001- |
|||
| ? | 131-10-25160 | SPRING | 1 | SN: 1001- |
|||
| ? | 170-10-15290 | WASHER | 1 | SN: 1001- |
|||
| ? | 170-10-15251 | RING,SNAP | 1 | SN: 1001- |
|||
| ? | 170-10-15231 | RING,SNAP | 1 | SN: 1001- |
|||
| ? | 141-10-34133 | BRACKET | 1 | SN: 1001- |
|||
| ? | 141-10-34150 | GASKET | 1 | SN: 1001- |
|||
| ? | 07017-00022 | SEAL,OIL | 1 | SN: 1001- |
|||
| ? | 141-10-34310 | PLATE | 1 | SN: 1001- |
|||
| ? | 141-10-34222 | BOOT | 1 | SN: 1001- |
|||
| ? | 01640-21016 | WASHER | 4 | SN: 1001- |
|||
| ? | 141-10-34230 | PLATE | 1 | SN: 1001- |
|||
| ? | 01010-51060 | BOLT | 4 | SN: 1001- |
|||
| ? | 01602-21030 | WASHER,SPRING | 4 | SN: 1001- |
|||
| ? | 150-14-15260 | CLAMP | 1 | SN: 1001- |
|||
| ? | 01220-40416 | SCREW | 1 | SN: 1001- |
|||
| ? | 01580-10403 | NUT | 1 | SN: 1001- |
|||
| ? | 141-10-34280 | SEAL | 1 | SN: 1001- |
|||
| ? | 141-10-34260 | VALVE | 1 | SN: 1001- |
|||
| ? | 141-10-34141 | SPRING | 1 | SN: 1001- |
|||
| ? | 141-10-34271 | PLUG | 1 | SN: 1001- |
|||
| ? | 07000-02014 | O-RING | 1 | SN: 1001- |
|||
| ? | 170-10-15330 | O-RING | 1 | SN: 1001- |
|||
| ? | 170-10-91130 | PACKING | 1 | SN: 1001- |
|||
| ? | 170-10-15130 | O-RING | 1 | SN: 1001- |
|||
| ? | 141-10-34120 | GASKET | 1 | SN: 1001- |
|||
| ? | 01140-51050 | STUD | 3 | SN: 1001- |
|||
| ? | 01582-11008 | NUT | 3 | SN: 1001- |
|||
| ? | 01602-21030 | WASHER,SPRING | 3 | SN: 1001- |
|||
| ? | 01010-51030 | BOLT | 7 | SN: 1001- |
|||
| ? | 01602-21030 | WASHER,SPRING | 7 | SN: 1001- |
|||
| ? | KZ10-01-7130 | BRACKET | 1 | SN: 1001- |
