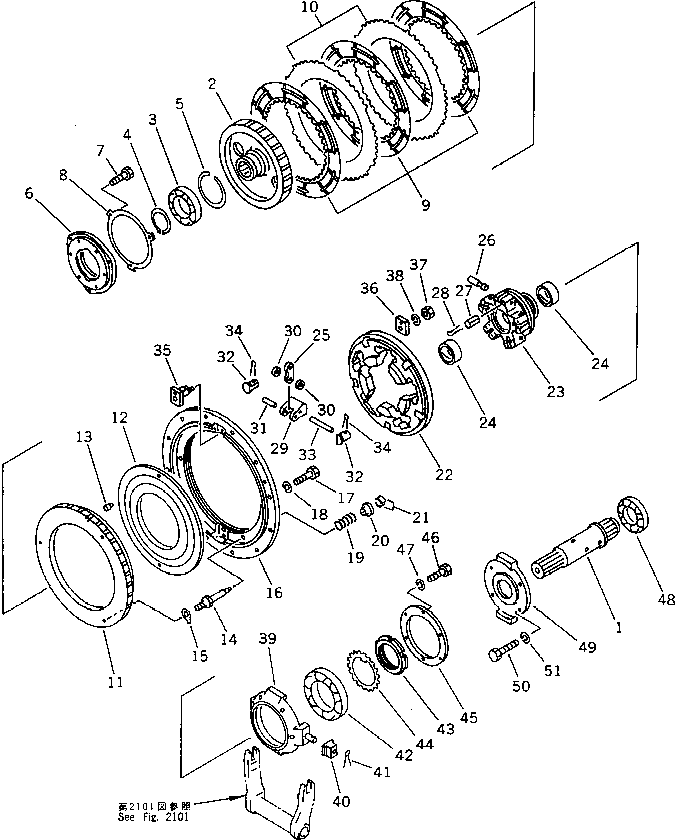

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 144-10-12160 | SHAFT | 1 | SN: 1001- |
|||
| ? | 144-10-12190 | HUB | 1 | SN: 1001- |
|||
| ? | 06040-06015 | BEARING,BALL | 1 | SN: 1001- |
|||
| ? | 04064-07525 | RING,SNAP | 1 | SN: 1001- |
|||
| ? | 04067-00115 | RING,SNAP | 1 | SN: 1001- |
|||
| ? | 141-10-31210 | RETAINER | 1 | SN: 1001- |
|||
| ? | 01010-31030 | BOLT | 3 | SN: 1001- |
|||
| ? | 141-10-31220 | PLATE,LOCK | 1 | SN: 1001- |
|||
| ? | 144-10-12150 | DISC | 3 | SN: 1001- |
|||
| ? | 131-10-11120 | PLATE | 2 | SN: 1001- |
|||
| ? | 150-10-11141 | PLATE,PRESSURE | 1 | SN: 1001- |
|||
| ? | 141-10-31121 | HUB | 1 | SN: 1001- |
|||
| ? | 144-10-51130 | PIN,DOWEL | 2 | SN: 1001- |
|||
| ? | 144-10-51151 | GUIDE | 3 | SN: 1001- |
|||
| ? | 150-10-11180 | WASHER,LOCK | 3 | SN: 1001- |
|||
| ? | 144-10-51120 | BRACKET | 1 | SN: 1001- |
|||
| ? | 01010-31235 | BOLT | 12 | SN: 1001- |
|||
| ? | 01602-21236 | WASHER,SPRING | 12 | SN: 1001- |
|||
| ? | 150-10-11221 | SPRING | 3 | SN: 1001- |
|||
| ? | 144-10-12280 | COLLAR | 3 | SN: 1001- |
|||
| ? | 144-10-12270 | COLLAR | 3 | SN: 1001- |
|||
| ? | 150-10-21320 | RING | 1 | SN: 1001- |
|||
| ? | 150-10-21390 | COLLAR | 1 | SN: 1001- |
|||
| ? | 141-10-11620 | BUSHING | 2 | SN: 1001- |
|||
| ? | 144-10-12710 | LINK | 5 | SN: 1001- |
|||
| ? | 144-10-12720 | PIN | 5 | SN: 1001- |
|||
| ? | 04025-00532 | PIN,SPRING | 5 | SN: 1001- |
|||
| ? | 04050-13040 | PIN,COTTER | 5 | SN: 1001- |
|||
| ? | 141-10-31130 | LINK,WEIGHT | 5 | SN: 1001- |
|||
| ? | 170-10-11460 | ROLLER | 10 | SN: 1001- |
|||
| ? | 144-10-12730 | PIN,LINK | 5 | SN: 1001- |
|||
| ? | 150-10-11170 | BUSHING | 10 | SN: 1001- |
|||
| ? | 170-10-11450 | PIN | 5 | SN: 1001- |
|||
| ? | 04050-14030 | PIN,COTTER | 10 | SN: 1001- |
|||
| ? | 141-10-11260 | LOCK | 2 | SN: 1001- |
|||
| ? | 170-10-11410 | PLATE | 2 | SN: 1001- |
|||
| ? | 01582-01411 | NUT | 2 | SN: 1001- |
|||
| ? | 01602-21442 | WASHER,SPRING | 2 | SN: 1001- |
|||
| ? | 144-10-12240 | COLLAR | 1 | SN: 1001- |
|||
| ? | 150-11-12621 | BLOCK | 2 | SN: 1001- |
|||
| ? | 04050-14035 | PIN,COTTER | 2 | SN: 1001- |
|||
| ? | 06040-06020 | BEARING,BALL | 1 | SN: 1001- |
|||
| ? | 150-10-21420 | NUT | 1 | SN: 1001- |
|||
| ? | 150-10-21410 | WASHER,LOCK | 1 | SN: 1001- |
|||
| ? | 150-10-21371 | PLATE | 1 | SN: 1001- |
|||
| ? | 01010-51025 | BOLT | 6 | SN: 1001- |
|||
| ? | 01602-21030 | WASHER,SPRING | 6 | SN: 1001- |
|||
| ? | 06042-00212 | BEARING,ROLLER | 1 | SN: 1001- |
|||
| ? | 144-10-12230 | COVER | 1 | SN: 1001- |
|||
| ? | 01010-31030 | BOLT | 4 | SN: 1001- |
|||
| ? | 01602-21030 | WASHER,SPRING | 4 | SN: 1001- |
