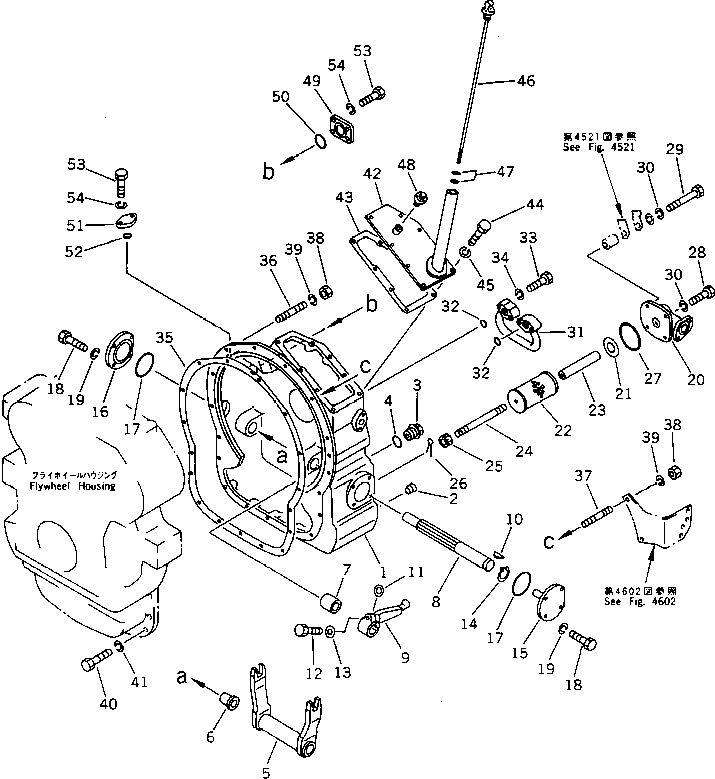

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 144-10-12110 | CASE | 1 | SN: 1001- |
|||
| ? | 07043-00617 | PLUG | 2 | SN: 1001- |
|||
| ? | 07044-13620 | PLUG | 1 | SN: 1001- |
|||
| ? | 07000-03032 | O-RING | 1 | SN: 1001- |
|||
| ? | 144-10-12250 | YOKE | 1 | SN: 1001- |
|||
| ? | 175-10-12230 | BUSHING | 1 | SN: 1001- |
|||
| ? | 170-10-16120 | BUSHING | 1 | SN: 1001- |
|||
| ? | 141-10-32280 | SHAFT | 1 | SN: 1001- |
|||
| ? | 144-10-52110 | LEVER | 1 | SN: 1001- |
|||
| ? | 04010-00732 | KEY | 1 | SN: 1001- |
|||
| ? | 144-10-52120 | SPACER | 1 | SN: 1001- |
|||
| ? | 01010-81650 | BOLT | 1 | SN: 1001- |
|||
| ? | 01643-31645 | WASHER | 1 | SN: 1001- |
|||
| ? | 130-09-16420 | RING,SNAP | 1 | SN: 1001- |
|||
| ? | 141-10-32153 | COVER | 1 | SN: 1001- |
|||
| ? | 141-10-32162 | COVER | 1 | SN: 1001- |
|||
| ? | 07000-02080 | O-RING | 2 | SN: 1001- |
|||
| ? | 01010-51025 | BOLT | 8 | SN: 1001- |
|||
| ? | 01602-21030 | WASHER,SPRING | 8 | SN: 1001- |
|||
| ? | 141-10-34250 | FLANGE | 1 | SN: 1001- |
|||
| ? | 170-10-16490 | GASKET | 1 | SN: 1001- |
|||
| ? | 144-10-12140 | STRAINER | 1 | SN: 1001- |
|||
| ? | 170-10-16361 | SPACER | 1 | SN: 1001- |
|||
| ? | 170-10-16372 | STUD | 1 | SN: 1001- |
|||
| ? | 01593-11008 | NUT | 1 | SN: 1001- |
|||
| ? | 04050-12025 | PIN,COTTER | 1 | SN: 1001- |
|||
| ? | 07000-03092 | O-RING | 1 | SN: 1001- |
|||
| ? | 01010-51030 | BOLT | 3 | SN: 1001- |
|||
| ? | 01010-51055 | BOLT | 1 | SN: 1001- |
|||
| ? | 01602-21030 | WASHER,SPRING | 4 | SN: 1001- |
|||
| ? | 141-10-32220 | TUBE | 1 | SN: 1001- |
|||
| ? | 07000-03025 | O-RING | 2 | SN: 1001- |
|||
| ? | 01010-51050 | BOLT | 4 | SN: 1001- |
|||
| ? | 01602-21030 | WASHER,SPRING | 4 | SN: 1001- |
|||
| ? | 141-10-32120 | GASKET | 1 | SN: 1001- |
|||
| ? | 01140-51230 | STUD | 6 | SN: 1001- |
|||
| ? | 01140-51235 | STUD | 2 | SN: 1001- |
|||
| ? | 01582-11210 | NUT | 8 | SN: 1001- |
|||
| ? | 01602-21236 | WASHER,SPRING | 8 | SN: 1001- |
|||
| ? | 01010-51240 | BOLT | 9 | SN: 1001- |
|||
| ? | 01602-21236 | WASHER,SPRING | 9 | SN: 1001- |
|||
| ? | 144-10-12512 | COVER | 1 | SN: 1001- |
|||
| ? | 141-10-32143 | GASKET | 1 | SN: 1001- |
|||
| ? | 01010-51025 | BOLT | 8 | SN: 1001- |
|||
| ? | 01602-21030 | WASHER,SPRING | 8 | SN: 1001- |
|||
| ? | 144-10-51110 | GAUGE,OIL LEVEL | 1 | SN: 1001- |
|||
| ? | 07002-02434 | O-RING | 2 | SN: 1001- |
|||
| ? | 07030-00252 | BREATHER | 1 | SN: 1001- |
|||
| ? | 144-10-12411 | COVER | 1 | SN: 1001- |
|||
| ? | 07000-03048 | O-RING | 1 | SN: 1001- |
|||
| ? | 144-10-12421 | COVER | 1 | SN: 1001- |
|||
| ? | 07000-03025 | O-RING | 1 | SN: 1001- |
|||
| ? | 01010-51025 | BOLT | 6 | SN: 1001- |
|||
| ? | 01602-21030 | WASHER,SPRING | 6 | SN: 1001- |
