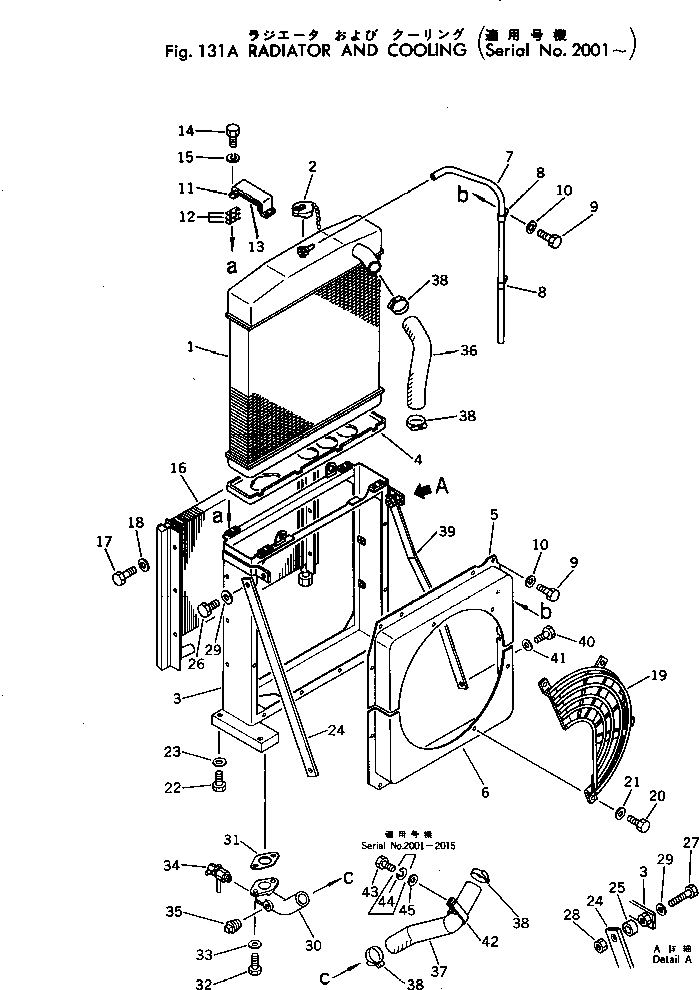

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 203-03-00010 | RADIATOR ASS'Y | 1 | SN: 1001- |
|||
| ? | 203-03-21100 | • CORE ASS'Y | 1 | SN: 1001- |
|||
| ? | 101-03-13141 | • CAP | 1 | SN: 1001- |
|||
| ? | 11T-03-11280 | FRAME | 1 | SN: 2001- |
|||
| ? | 203-03-21160 | SEAT | 1 | SN: 1001- |
|||
| ? | 11T-03-11112 | SHROUD | 1 | SN: 2001- |
|||
| ? | 11T-03-11122 | SHROUD | 1 | SN: 2001- |
|||
| ? | 203-03-21180 | TUBE | 1 | SN: 1001- |
|||
| ? | 232-03-11210 | CLIP | 2 | SN: 1001- |
|||
| ? | 01010-31016 | BOLT | 12 | SN: 1001- |
|||
| ? | 01643-31032 | WASHER | 12 | SN: 1001- |
|||
| ? | 110-03-11420 | CLAMP | 2 | SN: 1001- |
|||
| ? | 110-03-11440 | SHIM ? 0.5MM | 16 | SN: 1001- |
|||
| ? | 205-03-51180 | SEAT | 2 | SN: 1001- |
|||
| ? | 01010-30816 | BOLT | 8 | SN: 1001- |
|||
| ? | 01602-00825 | WASHER | 8 | SN: 1001- |
|||
| ? | 11T-03-11290 | OIL COOLER ASS'Y | 1 | SN: 2001- |
|||
| ? | 01010-31016 | BOLT | 6 | SN: 1001- |
|||
| ? | 01643-31032 | WASHER | 6 | SN: 1001- |
|||
| ? | 11T-03-11131 | NET | 1 | SN: 2001- |
|||
| ? | 01010-31020 | BOLT | 4 | SN: 1001- |
|||
| ? | 01643-31032 | WASHER | 4 | SN: 1001- |
|||
| ? | 01010-31230 | BOLT | 4 | SN: 1001- |
|||
| ? | 01643-31232 | WASHER | 4 | SN: 1001- |
|||
| ? | 11T-03-11260 | STAY | 1 | SN: 1001- |
|||
| ? | 198-33-12380 | WASHER | 1 | SN: 1001- |
|||
| ? | 01010-31230 | BOLT | 2 | SN: 2001- |
|||
| ? | 01010-31260 | BOLT | 1 | SN: 1001- |
|||
| ? | 01580-01210 | NUT | 1 | SN: 1001- |
|||
| ? | 01643-31232 | WASHER | 4 | SN: 1001- |
|||
| ? | 203-03-21210 | TUBE | 1 | SN: 1001- |
|||
| ? | 110-03-11490 | GASKET | 1 | SN: 1001- |
|||
| ? | 01010-31230 | BOLT | 2 | SN: 1001- |
|||
| ? | 01643-31232 | WASHER | 2 | SN: 1001- |
|||
| ? | 07730-30004 | VALVE | 1 | SN: 1001- |
|||
| ? | 07042-30415 | PLUG | 1 | SN: 1001- |
|||
| ? | 11T-03-11142 | HOSE | 1 | SN: 2001- |
|||
| ? | 11T-03-11152 | HOSE | 1 | SN: 2001- |
|||
| ? | 07281-00709 | CLAMP | 4 | SN: 1001- |
|||
| ? | 11T-03-11270 | STAY | 1 | SN: 2001- |
|||
| ? | 01010-31235 | BOLT | 1 | SN: 2001- |
|||
| ? | 01643-31232 | WASHER | 1 | SN: 2001- |
|||
| ? | 11T-03-11310 | CLIP | 1 | SN: 2001- |
|||
| ? | 01010-30816 | BOLT | 1 | SN: 2001- |
|||
| ? | 01602-00825 | WASHER | 1 | SN: 2001-2015 |
|||
| ? | 01643-30823 | WASHER | 1 | SN: 2016- |
|||
| ? | 01641-00812 | WASHER | 1 | SN: 2001-2015 |
