| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

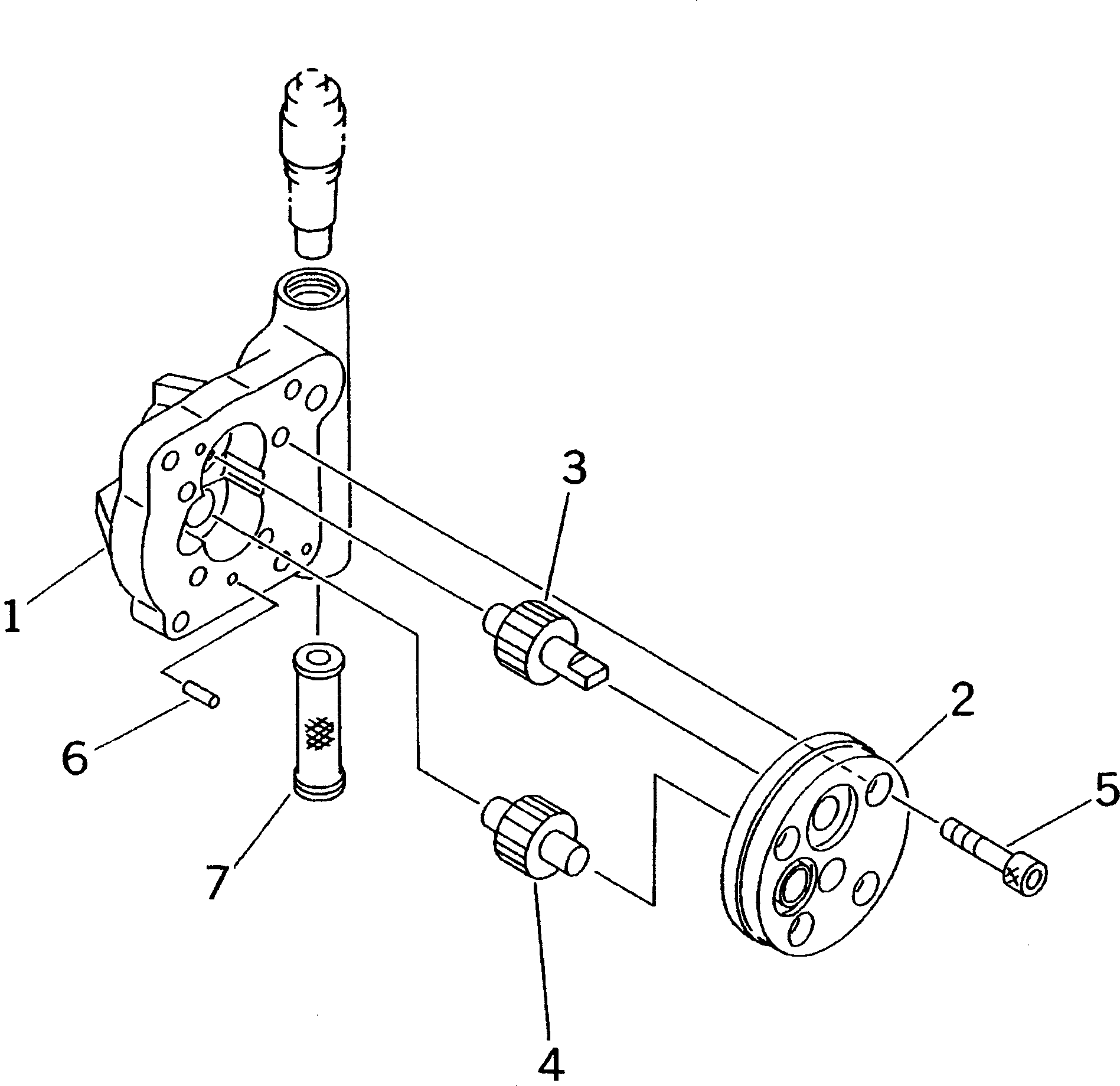

| ? | (708-1W-00042) | PUMP ASS'Y | 1 | SN: 1002-1100 |
|||
| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6101 TO 6105. | ||||||
| ? | 704-24-24430 | • GEAR PUMP ASS'Y | 1 | SN: 1002-1100 |
|||
| ? | (★704-28-24430) | • • CASE | 1 | SN: 1002-1100 |
|||
| ? | (★704-27-00610) | • • • BUSHING,PLANE | 2 | SN: 1002-1100 |
|||
| ? | (★704-28-00010) | • • COVER | 1 | SN: 1002-1100 |
|||
| ? | (★704-27-00610) | • • • BUSHING,PLANE | 2 | SN: 1002-1100 |
|||
| ? | (★704-28-24620) | • • GEAR,DRIVE | 1 | SN: 1002-1100 |
|||
| ? | (★704-28-24710) | • • GEAR,DRIVEN | 1 | SN: 1002-1100 |
|||
| ? | (★01252-31025) | • • BOLT | 4 | SN: 1002-1100 |
|||
| ? | (★04020-00616) | • • PIN,DOWEL | 2 | SN: 1002-1100 |
|||
| ? | 704-28-02751 | • • STRAINER | 1 | SN: 1002-1100 |
