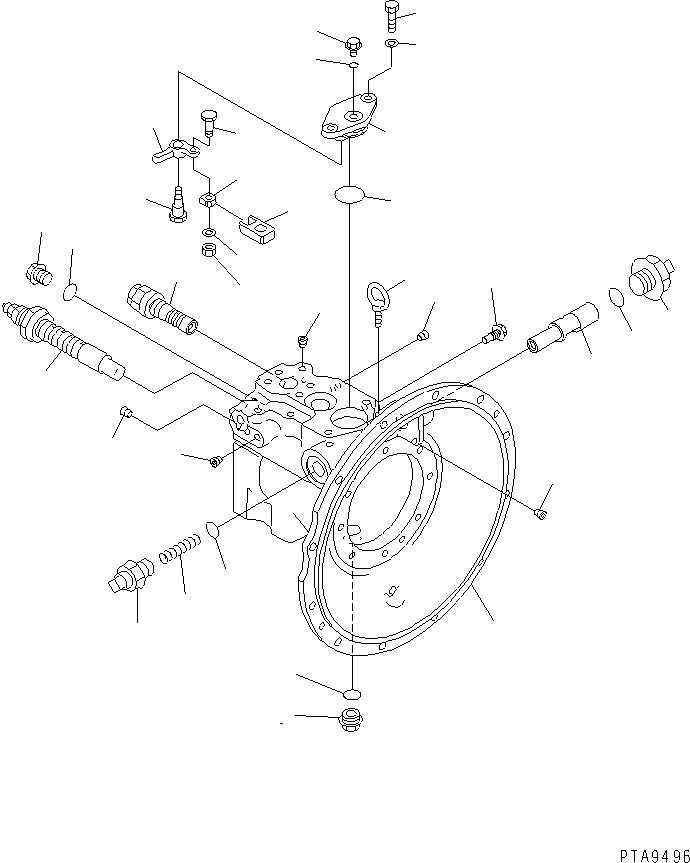

HYDRAULIC PUMP (2/5) (CASE)(#1002-1100)(150040 : 6102)
Номер на схеме Каталожный номер Название Количество Детали
? (708-1W-00042) PUMP ASS'Y 1
SN: 1002-1100
? THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6101 TO 6105.
? 708-1W-01042 • PUMP SUB ASS'Y 1
SN: 1002-1100
? THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6101 TO 6104.
? 708-1W-04011 • • CASE ASS'Y 1
SN: 1002-1100
? ☆ • • • CASE,PUMP 1
SN: 1002-1100
? ☆ • • • PLUG 12
SN: 1002-1100
? 07044-12412 • • PLUG 1
SN: 1002-1100
? 07002-02434 • • O-RING 1
SN: 1002-1100
? 04530-11018 • • BOLT,EYE 1
SN: 1002-1100
? 720-68-19870 • • PLUG 1
SN: 1002-1100
? 07002-01223 • • O-RING 1
SN: 1002-1100
? 706-8E-14191 • • PLUG 1
SN: 1002-1100
? 07002-11823 • • O-RING 1
SN: 1002-1100
? (★708-1W-24112) • • PISTON 1
SN: 1002-1100
? (★708-1W-24412) • • SLIDER 1
SN: 1002-1100
? (★708-1W-24211) • • BOLT,ADJUST 1
SN: 1002-1100
? 708-1W-28910 • • O-RING 1
SN: 1002-1100
? (★708-1W-24311) • • BOLT,ADJUST 1
SN: 1002-1100
? 708-1W-28920 • • O-RING 1
SN: 1002-1100
? 708-1W-24320 • • SPRING 1
SN: 1002-1100
? (★708-1W-26121) • • LEVER 1
SN: 1002-1100
? (★708-1W-26132) • • PIN 1
SN: 1002-1100
? (★708-1W-26113) • • COVER 1
SN: 1002-1100
? (★07000-03045) • • O-RING 1
SN: 1002-1100
? (★01010-50830) • • BOLT 2
SN: 1002-1100
? (★01643-30823) • • WASHER 2
SN: 1002-1100
? (★708-1W-26210) • • PIN 1
SN: 1002-1100
? (★708-1W-26221) • • SLIDER 1
SN: 1002-1100
? (★708-1W-26230) • • WASHER 1
SN: 1002-1100
? 01580-10605 • • NUT 1
SN: 1002-1100
? (708-1W-04512) • • VALVE ASS'Y,PC SERVO 1
SN: 1002-1100
? (708-1W-25710) • • ORIFICE 1
SN: 1002-1100
? (708-1W-04712) • • VALVE ASS'Y,LS 1
SN: 1002-1100
