| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

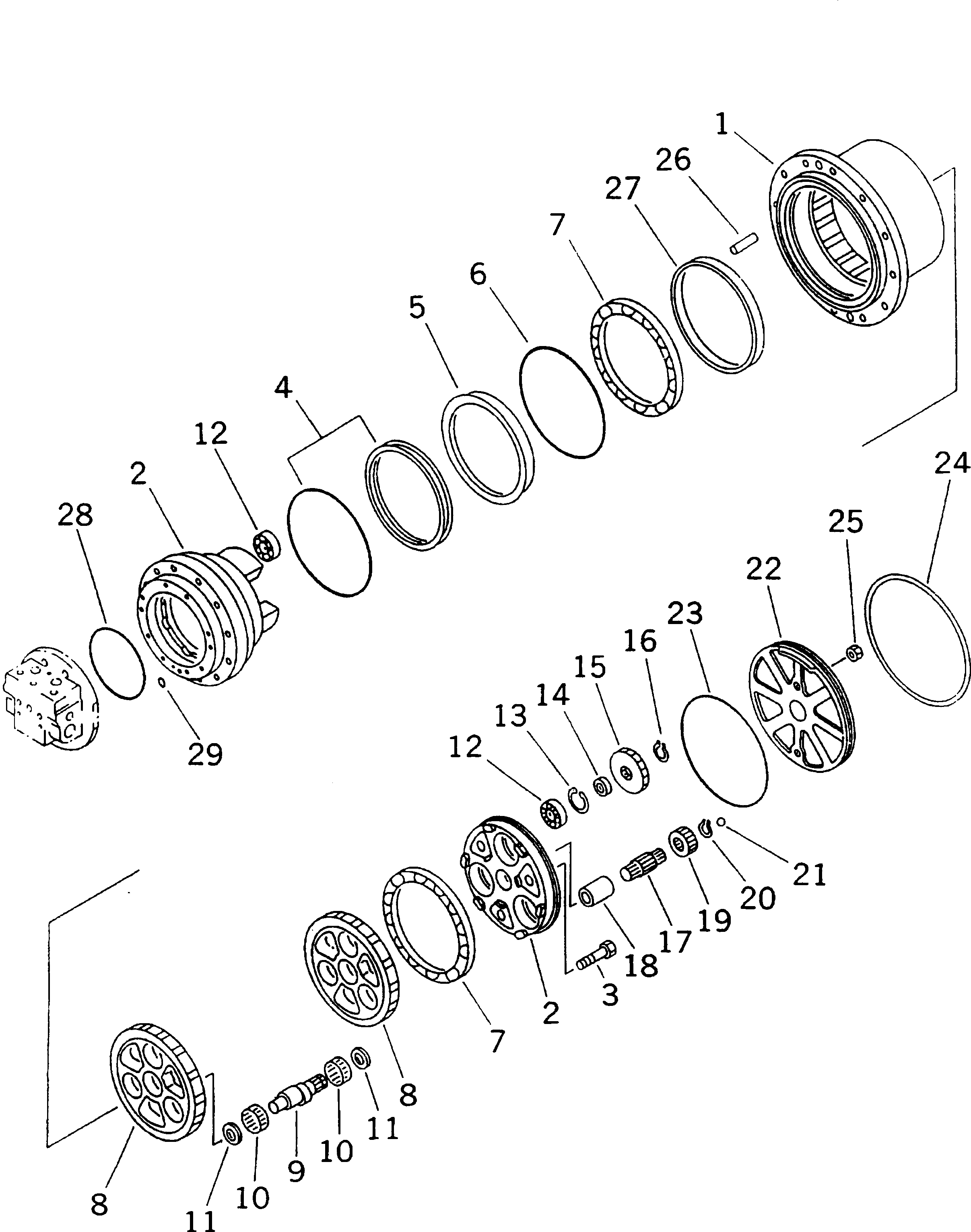

| ? | (201-60-71100) | TRAVEL MOTOR ASS'Y | 2 | SN: 1002-1100 |
|||
| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6431 TO 6433. | ||||||
| ? | TZ913B10000-00 | • FINAL SUB ASS'Y | 1 | SN: 1002-1100 |
|||
| ? | (★TZ810B1001-00) | • • HUB | 1 | SN: 1002-1100 |
|||
| ? | (★TZ910B1102-00) | • • SPINDLE KIT | 1 | SN: 1002-1100 |
|||
| ? | (★TZ910B1132-00) | • • • SPINDLE ASS'Y | 1 | SN: 1002-1100 |
|||
| ? | TZMB700-060 | • • • PLUG | 1 | SN: 1002-1100 |
|||
| ? | TZ910B1019-01 | • • • BOLT,REAMER | 3 | SN: 1002-1100 |
|||
| ? | TZES100-192-A | • • SEAL,FLOATING (K1) | 1 | SN: 1002-1100 |
|||
| ? | TZ860A1010-01 | • • PIECE,DISTANCE | 1 | SN: 1002-1100 |
|||
| ? | 07000-15230 | • • O-RING (K1) | 1 | SN: 1002-1100 |
|||
| ? | (★TZ810B1021-00) | • • BEARING | 2 | SN: 1002-1100 |
|||
| ? | (★TZ910B1104-00) | • • RV GEAR ASS'Y | 1 | SN: 1002-1100 |
|||
| ? | ☆ | • • • RV GEAR | 1 | SN: 1002-1100 |
|||
| ? | (★TZ910B1009-00) | • • • SHAFT,CRANK | 3 | SN: 1002-1100 |
|||
| ? | (★TZ910B1023-00) | • • • BEARING | 6 | SN: 1002-1100 |
|||
| ? | (★TZ910B1012-00) | • • • SPACER | 6 | SN: 1002-1100 |
|||
| ? | (★TZ860A1022-00) | • • • BEARING | 6 | SN: 1002-1100 |
|||
| ? | (★TZ860A1013-00) | • • SNAP RING SET (12 KINDS) | 3 | SN: 1002-1100 |
|||
| ? | TZ800B1014-00 | • • PIECE,DISTANCE | 3 | SN: 1002-1100 |
|||
| ? | TZ811B1107-00 | • • SPUR GEAR KIT (3 PIECES) | 1 | SN: 1002-1100 |
|||
| ? | 04064-02512 | • • RING,SNAP | 3 | SN: 1002-1100 |
|||
| ? | TZ910B1016-00 | • • SHAFT | 1 | SN: 1002-1100 |
|||
| ? | TZ800A1015-00 | • • JOINT | 1 | SN: 1002-1100 |
|||
| ? | TZ811B1006-00 | • • GEAR,INPUT | 1 | SN: 1002-1100 |
|||
| ? | TZJB2804-S19 | • • RING,SNAP | 1 | SN: 1002-1100 |
|||
| ? | 04260-00952 | • • BALL | 1 | SN: 1002-1100 |
|||
| ? | TZ810B1008-00 | • • COVER | 1 | SN: 1002-1100 |
|||
| ? | TZJW1516-P74-9 | • • O-RING (K1) | 1 | SN: 1002-1100 |
|||
| ? | TZ810B1018-00 | • • RING | 1 | SN: 1002-1100 |
|||
| ? | TZGM3-8 | • • PLUG | 2 | SN: 1002-1100 |
|||
| ? | TZ810B1017-00 | • • PIN | 24 | SN: 1002-1100 |
|||
| ? | TZ810B1020-00 | • • COLLAR | 1 | SN: 1002-1100 |
|||
| ? | TZJW1516-G35-9 | • • O-RING (K1) | 1 | SN: 1002-1100 |
|||
| ? | 07000-11007 | • • O-RING (K1) | 2 | SN: 1002-1100 |
|||
| ? | SERVICE KIT | ||||||
| ? | TZ922B9000-00 | SEAL KIT | 1 | SN: 1002-1100 |
|||
| ? | TZSUN-2BG140 | • RING,BACK-UP | 1 | SN: 1002-1100 |
|||
| ? | 07000-12140 | • O-RING | 1 | SN: 1002-1100 |
|||
| ? | TZJW1516-G28-9 | • O-RING | 1 | SN: 1002-1100 |
|||
| ? | TZSUN-3WG28 | • RING,BACK-UP | 1 | SN: 1002-1100 |
|||
| ? | TZ15Z-22-42-10 | • SEAL | 1 | SN: 1002-1100 |
|||
| ? | 07000-11009 | • O-RING | 1 | SN: 1002-1100 |
|||
| ? | 07000-11008 | • O-RING | 1 | SN: 1002-1100 |
|||
| ? | 07000-12018 | • O-RING | 2 | SN: 1002-1100 |
|||
| ? | TZJB2401-P26-9 | • O-RING | 2 | SN: 1002-1100 |
|||
| ? | 07000-12016 | • O-RING | 2 | SN: 1002-1100 |
|||
| ? | 07002-02034 | • O-RING | 1 | SN: 1002-1100 |
|||
| ? | TZES100-192-A | • SEAL,FLOATING | 1 | SN: 1002-1100 |
|||
| ? | 07000-15230 | • O-RING | 1 | SN: 1002-1100 |
|||
| ? | TZJW1516-P74-9 | • O-RING | 1 | SN: 1002-1100 |
|||
| ? | TZJW1516-G35-9 | • O-RING | 1 | SN: 1002-1100 |
|||
| ? | 07000-11007 | • O-RING | 2 | SN: 1002-1100 |
